Quick Code: BB-522181

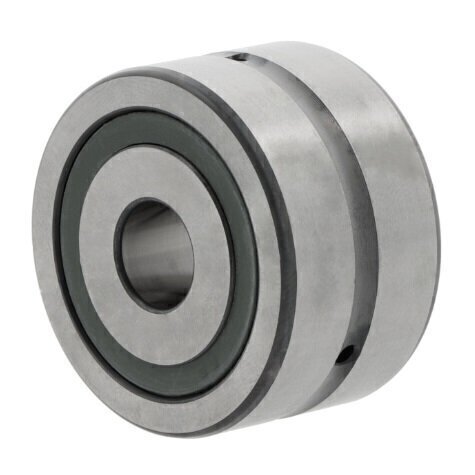

BSN2052-DDUHP2B NSK Axial Angular Contact Ball Bearing 20mm x 52mm x 28mm
BSN2052 DDUHP2B NSK Axial Angular Contact Ball Bearing
This premium axial angular contact bearing from NSK is engineered for demanding applications requiring exceptional precision, load capacity, and reliable performance in highly dynamic operating conditions. The BSN2052 DDUHP2B combines advanced design features with NSK's quality engineering standards to deliver superior performance across a wide range of industrial applications.
Key Performance Features:
- 60 degree contact angle enables support for both radial forces and high axial loads
- Double-direction capability for bi-directional load support and mounting flexibility
- Sealed design provides enhanced protection against contaminants and maintenance-free operation
- High-precision construction with P2/ABEC 9 tolerance class for exceptional accuracy and reliability
- Polyamide cage design optimized for low-friction performance and extended bearing life
- Lubrication groove feature ensures effective lubrication and extended service life
Design & Construction:
- NSK quality engineering and manufacturing standards
- Standard bearing steel construction for durability and load capacity
- Precision tolerances for enhanced accuracy under demanding operating conditions
- Optimized geometry for efficient power transmission and minimal friction
Specifications:
- Bore Diameter: 20mm
- Outer Diameter: 52mm
- Width: 28mm
- Manufacturer: NSK
- Contact Angle: 60 degree
- Operating Temperature Range: -20 degreeC to +120 degreeC
- Tolerance Class: P2 / ABEC 9
- Sealing Type: Sealed
- Cage Material: Polyamide
- Lubrication: With lubrication groove
- Mounting: Without fixing holes, direct mounting capability
Ideal Applications:
This bearing is particularly well-suited for:
- Screw drives and ball screw applications requiring combined radial and axial loading
- Precision spindle and rotating equipment
- Industrial machinery with stringent accuracy requirements
- High-speed rotating equipment and dynamic applications
- Equipment operating in variable temperature environments
- Applications demanding low-maintenance, sealed bearing solutions
The BSN2052 DDUHP2B bearing provides excellent performance with minimal maintenance, making it an ideal choice for applications where precision, durability, and consistent long-term performance are critical. The sealed design and wide operating temperature range make it suitable for challenging industrial environments.
