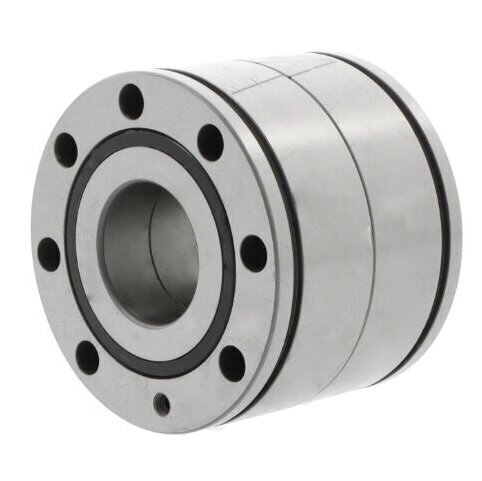

BSF40115-DDUHP2B NSK Axial Angular Contact Ball Bearing 40mm x 115mm x 46mm
BSF40115 DDUHP2B NSK Axial Angular Contact Ball Bearing
This precision axial angular contact ball bearing is engineered for demanding industrial applications requiring exceptional performance, accuracy, and reliability. With a 60 degree contact angle, it delivers superior load capacity and rigidity while maintaining low friction operation across a wide temperature range.
Key Features:
- Supports both radial and high axial forces simultaneously
- Double direction bearing design for bidirectional load support and versatile mounting orientations
- 60 degree contact angle enables enhanced load capacity and rigidity
- Sealed design for maintenance-free operation and extended service life
- Fixed lubrication grooves (two lubrication holes) for optimized lubrication distribution and reduced friction
- Direct mounting capability with integrated fixing holes for simplified and secure installation
- High accuracy and precision performance in demanding applications
- Polyamide cage design for reliable ball retention and smooth operation
Design Specifications:
- Brand: NSK
- Bore Diameter: 40mm
- Outer Diameter: 115mm
- Width: 46mm
- Sealing Type: Sealed (both sides)
- Cage Material: Polyamide
- Tolerance Class: P2 / ABEC 9 (high precision)
- Operating Temperature Range: -20 degreeC to +120 degreeC
- Lubrication: Two integrated lubrication grooves for optimized performance
- Fixing: Integrated fixing holes for direct mounting
- Material: Standard bearing steel
Applications:
Ideal for highly dynamic screw drive assemblies, ball screw applications, precision machinery, spindle bearings, and industrial equipment demanding high rigidity, minimal friction, exceptional load handling, and reliable long-term performance under challenging operating conditions. The sealed design and lubrication grooves make it particularly suitable for applications requiring minimal maintenance and extended bearing life across varying temperature environments.
