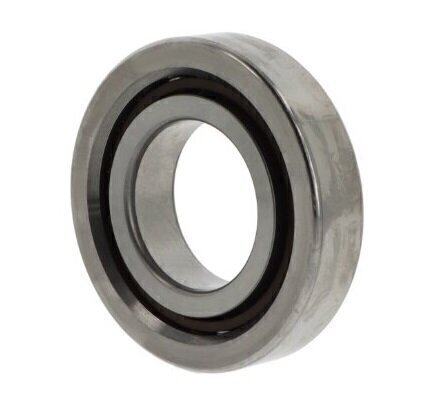

7602015-TVP FAG Axial Angular Contact Ball Bearing 15mm x 35mm x 11mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
FAG
Cage
Polyamide cage
Contact angle
60 degree
Fixing
Without fixing holes
Inside Dia
15mm
Lubrication hole
Without lubrication groove
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia
35mm
Product range
Single bearing
Sealing Type
Open
Temperature range
-30 to +120 °C
Tolerance class
Special tolerance
Width
11mm
Reference
7602015-TVP
Additional Reference:
10188892
Quick Order Code
BB-530946
Product Description
7602015-TVP FAG Axial Angular Contact Ball Bearing
This compact axial angular contact bearing is engineered for precision applications requiring reliable performance in a space-constrained design. With dimensions of 15mm bore x 35mm outer diameter x 11mm width, it delivers excellent support for moderate rotational and thrust-intensive operations in demanding industrial environments.
Design & Performance
The 7602015-TVP is optimized for applications where both radial and axial load capacity are essential. The bearing's robust engineering ensures:
- Precise load distribution for smooth, reliable operation
- High accuracy and tight tolerances for consistent performance
- Strong load carrying capacity for both radial and axial forces
- Excellent rigidity and stability under operational stress
- Low friction characteristics for efficient power transmission
Technical Specifications
- 60 degree Contact Angle: Enables simultaneous support of radial and high axial forces
- Single Direction Design: Optimized for unidirectional axial loading
- Open Sealing: Unrestricted design allows for flexible integration in various mounting configurations
- Polyamide Cage: Lightweight cage construction ensures stable ball positioning and low friction
- Standard Bearing Steel: Premium material construction for durability and reliability
- Special Tolerance Class: Precision manufacturing for demanding applications
- Operating Temperature Range: -30 degreeC to +120 degreeC for versatile environmental performance
Applications
Ideal for precision machinery including spindles, high-speed rotating equipment, positioning systems, and other applications where compact size, accuracy, and reliable thrust support are critical.
