Quick Code: BB-524976

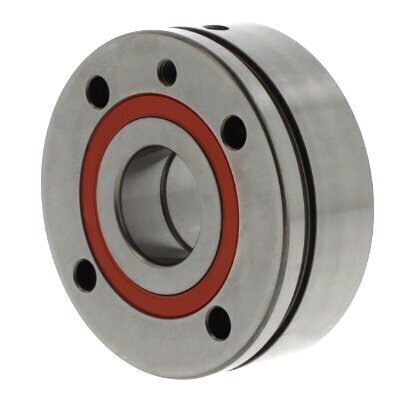

50TAU11F-2NSE/GM Nachi Axial Angular Contact Ball Bearing 50mm x 115mm x 34mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
Nachi
Cage
Polyamide cage
Contact angle
60 degree
Fixing
With fixing holes
Inside Dia
50mm
Lubrication hole
With lubrication groove
Material
Standard bearing steel
Operating direction
Double direction bearing
Outside Dia
115mm
Product range
Single bearing
Sealing Type
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P4 / ABEC 7
Width
34mm
Reference
50TAU11F-2NSE/GM
Additional Reference:
10150547
Quick Order Code
BB-524976
Product Description
The 50TAU11F-2NSE/GM is a premium Nachi axial angular contact ball bearing engineered for demanding industrial applications requiring exceptional precision and reliability. Measuring 50mm bore, 115mm outer diameter, and 34mm width, this bearing delivers superior performance in dynamic operating conditions.
Design & Performance
- Designed for highly dynamic operating conditions requiring high accuracy, substantial load carrying capacity, superior rigidity, and low friction
- Supports both radial and high axial forces with a robust 60 degree contact angle
- Double directional load capability for versatile load distribution and flexible mounting orientations
- Sealed design optimized for protection against contaminants while maintaining efficient operation
Construction & Features
- Polyamide cage construction for reliable performance and reduced maintenance requirements
- Standard bearing steel for proven durability and consistent performance
- Single bearing configuration optimized for direct integration into existing systems
- Tolerance class P4 / ABEC 7 for precision applications requiring tight tolerances
- Fixing holes for secure and stable installation
- Lubrication groove for effective lubrication management in sealed systems
- Operating temperature range: -20 to +120 degreeC for diverse environmental applications
Specifications
- Brand: Nachi
- Reference: 50TAU11F-2NSE/GM
- Bore Diameter: 50mm
- Outer Diameter: 115mm
- Width: 34mm
- Contact Angle: 60 degree
- Cage Material: Polyamide
- Sealing Type: Sealed
- Operating Direction: Double direction bearing
- Tolerance Class: P4 / ABEC 7
Ideal Applications
Perfect for precision industrial equipment, machine tool spindles, screw drive systems, industrial automation machinery, and other high-performance applications where reliability, accuracy, and efficient handling of combined axial and radial loads are critical requirements. The sealed design and lubrication groove make this bearing particularly suitable for environments requiring minimal maintenance while maintaining optimal performance.
