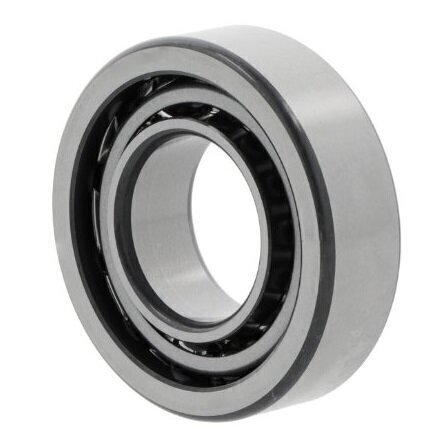

MJT1.1/2 NKE Single Row Angular Contact Ball Bearing 38.1mm x 95.25mm x 23.81mm
MJT1.1/2 NKE Single Row Angular Contact Ball Bearing 38.1mm x 95.25mm x 23.81mm
This precision-engineered single row angular contact ball bearing from NKE is designed to deliver reliable performance in demanding industrial applications. With its 35-degree contact angle and sheet steel cage construction, this bearing efficiently handles combined radial and axial loads simultaneously, making it ideal for machinery requiring consistent stability and durability across diverse operating conditions.
Design & Construction
- Single row configuration optimized for balanced load distribution and smooth operation
- 35-degree contact angle provides excellent efficiency in handling simultaneous radial and axial loads
- Sheet steel cage construction ensures robust performance and reliable operation in demanding environments
- Open bearing design allows for straightforward maintenance and unrestricted operational flexibility
- Standard arrangement with normal radial clearance for versatile industrial applications
- Precision-engineered to NKE's exacting standards for consistent, repeatable performance
Technical Specifications
- Bore Diameter: 38.1mm (1½ inches)
- Outer Diameter: 95.25mm (3¾ inches)
- Width: 23.81mm (15/16 inches)
- Row Type: Single
- Contact Angle: 35 degrees
- Cage Material: Sheet steel
- Seal Type: None (Open bearing)
- Clearance: Normal radial clearance
- Arrangement: Standard version
- Outer Ring: Without flange/groove
- Material: Standard bearing steel
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +150°C
- Brand: NKE
- Reference: MJT1.1/2
Features & Benefits
- 35° contact angle optimized for combined radial and axial load handling
- Sheet steel cage provides robust stability and reliable performance
- Standard arrangement suitable for versatile mounting configurations
- Compact 38.1mm bore diameter ideal for space-constrained applications
- Wide operating temperature range from -20°C to +150°C ensuring reliable performance in diverse industrial environments
- Open design eliminates seal maintenance requirements while providing operational flexibility
Typical Applications
Suitable for industrial equipment including electric motors, machine tool spindles, pumps, compressors, gearboxes, and precision machinery requiring combined radial and axial load capacity. The robust sheet steel cage construction and reliable performance make this bearing particularly ideal for applications demanding superior durability and consistent operation in demanding industrial environments. Perfect for equipment operating across varying temperature ranges where both precision and load-bearing capability are essential.
Reference Number: MJT1.1/2 | Brand: NKE
