LJT3.1/2 NKE Single Row Angular Contact Ball Bearing 88.9mm x 165.1mm x 28.575mm

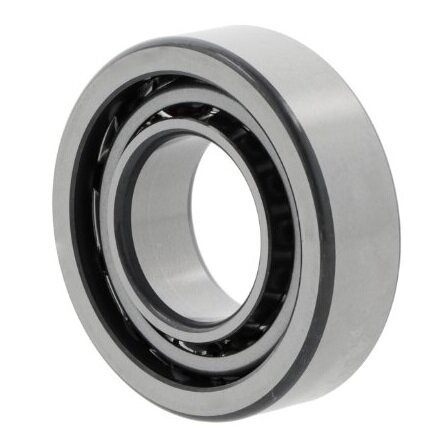

LJT3.1/2 NKE Single Row Angular Contact Ball Bearing
This premium single row angular contact ball bearing from NKE is engineered to handle simultaneous radial and axial loads in high-speed, precision applications. With a 35-degree contact angle and robust construction, the LJT3.1/2 delivers reliable performance across diverse industrial environments.
Bearing Specifications:
- Bore Diameter: 88.9mm (3.1/2 inches)
- Outer Diameter: 165.1mm (6.1/2 inches)
- Width: 28.575mm (1.1/8 inches)
- Contact Angle: 35°
- Type: Single Row, Non-separable Design
- Brand: NKE
- Reference: LJT3.1/2
Key Features:
- 35° contact angle optimized for balanced radial and axial load distribution
- Standard bearing steel construction for exceptional durability and load capacity
- Sheet steel cage design for stable ball centring and reliable operation
- Open bearing design (no seal) for applications requiring minimal friction and unrestricted access
- Normal radial clearance for optimal performance in standard industrial applications
- Tolerance class P0/PN2 (ABEC 1) precision manufacturing for consistent quality
- Extended operating temperature range: -20°C to +150°C for versatile deployment
- Standard version outer ring without flange or groove for flexible mounting options
- Metric and imperial size designation for global compatibility
Applications:
This angular contact bearing is ideal for industrial machinery, electric motors, gearboxes, spindles, machine tool equipment, and precision rotating machinery. The robust single-row construction and extended temperature range make it well-suited for both standard industrial applications and demanding environments where reliable axial and radial load handling are essential. Its compact design and medium bore size make it particularly valuable for space-constrained installations requiring high-performance bearing solutions.
Reference Number: LJT3.1/2 NKE
