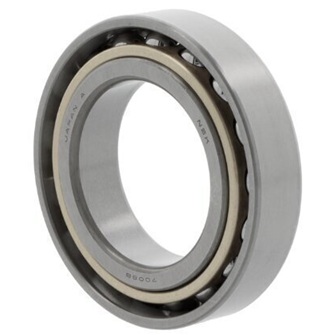

7408-BCBM SKF Single Row Angular Contact Ball Bearing
7408-BCBM SKF Single Row Angular Contact Ball Bearing
This premium SKF angular contact ball bearing is engineered to handle combined radial and axial loads simultaneously, making it ideal for high-speed, precision applications. As a single row design with a low axial clearance, this bearing pair is particularly well-suited for O- and X-arrangement configurations, providing superior load distribution and stability in demanding rotating equipment.
Key Features:
- 40° contact angle for optimal load distribution and performance
- Brass cage construction for enhanced durability and reliable operation
- Single row design accommodating axial loads in one direction
- Bearing pair with low axial clearance optimised for O- and X-arrangements
- Open bearing design with no seals for applications requiring minimal restrictions
- Manufactured by SKF, the world's largest bearing manufacturer, renowned for exceptional quality standards
Specifications:
- Inside Diameter: 40mm
- Outside Diameter: 110mm
- Width: 27mm
- Type: Single Row Angular Contact
- Contact Angle: 40°
- Cage Material: Brass
- Radial Clearance: Normal
- Seal Type: None (Open bearing)
- Tolerance Class: P0/PN2 (ABEC 1)
- Material: Standard bearing steel
- Operating Temperature Range: -20°C to +150°C
- Reference: 7408-BCBM SKF
Ideal Applications:
This bearing pair is well-suited for precision machinery, gearboxes, electric motors, machine tool spindles, and other high-speed rotating equipment where combined loads, precision, and reliability are critical requirements. The low axial clearance configuration makes it particularly effective in applications requiring minimal play and maximum load handling capability.
