Quick Code: BB-504131

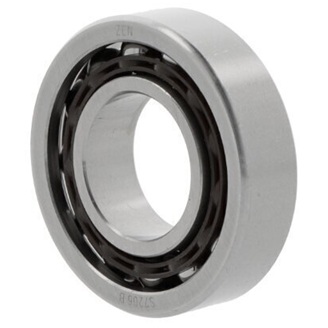

7302-BEGAP SKF Single Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Bearing pair with light preload in O- and X-arrangement
Brand
SKF
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
40 degree
Inside Dia
15mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
42mm
Row Type
Single
Seal
None, open bearing
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
13mm
Reference
7302-BEGAP
Additional Reference:
10075307
Quick Order Code
BB-504131
Product Description
7302-BEGAP SKF Single Row Angular Contact Ball Bearing
This precision-engineered SKF angular contact ball bearing is designed for applications requiring simultaneous radial and axial loads. The 7302-BEGAP features a bearing pair configuration with light preload, available in both O- and X-arrangements, making it ideal for high-speed precision equipment and demanding industrial applications.
Key Specifications:
- Bore Diameter: 15mm
- Outer Diameter: 42mm
- Width: 13mm
- Row Type: Single Row
- Contact Angle: 40 degrees
- Seal Type: Open Design (None)
- Cage Material: Polyamide
- Clearance: Normal Radial Clearance
- Arrangement: Bearing pair with light preload in O- and X-arrangement
- Tolerance Class: P0/PN2 (ABEC 1)
- Material: Standard Bearing Steel
- Outer Ring: Without Flange/Groove
- Operating Temperature Range: -20°C to +120°C
- Manufacturer: SKF
Design Features:
- Light preload configuration optimizes performance for combined radial and axial loads
- 40-degree contact angle provides excellent load capacity and precision
- Versatile arrangement options (O- and X-arrangement) for flexible application requirements
- Polyamide cage design for reduced weight and superior cage strength
- Compact dimensions ideal for space-constrained applications
- Open bearing design allows for custom sealing solutions
- SKF quality engineering for reliable, consistent performance
Typical Applications:
- High-speed spindle assemblies and machine tool equipment
- Automotive transmissions and gearboxes
- Industrial machinery with combined loading requirements
- Precision rotating shaft assemblies
- Motor and pump bearings
- Applications requiring light preload for improved rigidity and performance
This bearing pair is ready for immediate dispatch and offers the reliability and precision expected from SKF, a leading global bearing manufacturer.
