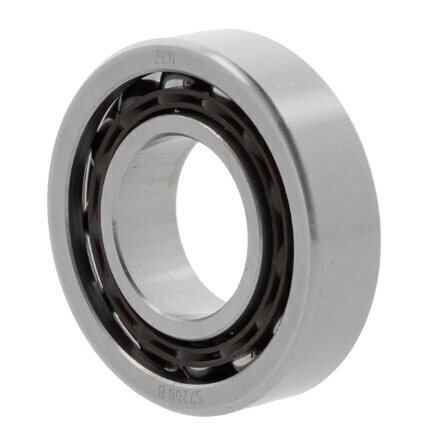

7214-B-XL-TVP-P5-UO FAG Single Row Angular Contact Ball Bearing 70mm x 125mm x 24mm
7214-B-XL-TVP-P5-UO FAG Single Row Angular Contact Ball Bearing
This precision single row angular contact ball bearing from FAG is engineered to deliver outstanding performance in high-speed applications requiring simultaneous radial and axial load handling. With a 40° contact angle and P5/ABEC 5 tolerance class, the 7214-B-XL-TVP-P5-UO offers exceptional accuracy and reliability for demanding industrial equipment.
Key Features:
- 40° contact angle for optimal combined radial and axial load distribution
- P5/ABEC 5 tolerance class for high precision applications
- Polyamide cage construction for reduced friction and smooth operation
- Clearance-free design in both O- and X-arrangement configurations, ideal for bearing pairs
- Normal radial clearance for versatile mounting flexibility
- Open bearing design (no seals) for applications where minimal friction is critical
- Manufactured from standard bearing steel to FAG's exacting quality standards
Specifications:
- Bore Diameter: 70mm
- Outer Diameter: 125mm
- Width: 24mm
- Row Type: Single Row
- Contact Angle: 40°
- Tolerance Class: P5 / ABEC 5
- Cage Material: Polyamide
- Seal Type: None (Open bearing)
- Operating Temperature Range: -20°C to +120°C
- Manufacturer: FAG
Applications:
Ideal for high-speed precision applications including spindle assemblies, gearboxes, electric motors, and automotive transmissions. The clearance-free bearing pair design makes it particularly suitable for back-to-back or face-to-face mounting configurations in equipment requiring precise axial positioning and minimal internal clearance.
