Quick Code: BB-497013

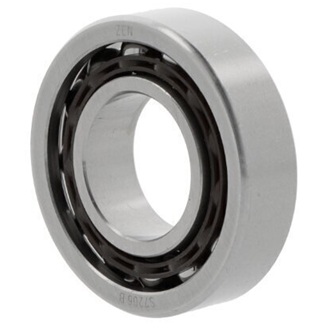

7208-BEP SKF Single Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
40 degree
Inside Dia
40mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
80mm
Row Type
Single
Seal
None, open bearing
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
18mm
Reference
7208-BEP
Additional Reference:
10030263
Quick Order Code
BB-497013
Product Description
7208-BEP SKF Single Row Angular Contact Ball Bearing
The 7208-BEP is a premium single row angular contact ball bearing from SKF, engineered for applications requiring combined radial and axial load capacity. This versatile bearing is ideal for high-speed precision machinery, gearboxes, and rotating equipment that demands reliable performance under demanding conditions.
Technical Specifications:
- Bore Diameter: 40mm
- Outer Diameter: 80mm
- Width: 18mm
- Contact Angle: 40°
- Row Type: Single row
- Cage Material: Polyamide
- Radial Clearance: Normal
- Seal Type: Open bearing (unsealed)
- Tolerance Class: P0/PN2 (ABEC 1)
- Material: Standard bearing steel
- Operating Temperature Range: -20°C to +120°C
- Outer Ring Configuration: Without flange/groove
Applications:
This bearing is well-suited for:
- Automotive transmissions and gearboxes
- Industrial motors and pumps
- Machine tool spindles
- High-speed rotating equipment
- Precision machinery requiring simultaneous radial and axial load handling
With its robust polyamide cage design and standard bearing steel construction, the 7208-BEP delivers consistent performance and extended service life. The open design allows for custom lubrication strategies tailored to your specific application requirements.
