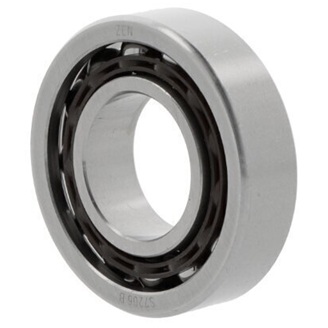

7206-BEP SKF Single Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
FAG Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
40 degree
Inside Dia
30mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
62mm
Row Type
Single
Seal
None, open bearing
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
16mm
Reference
7206-BEP
Additional Reference:
10017143
Quick Order Code
BB-495495
Product Description
The 7206-BEP SKF Single Row Angular Contact Ball Bearing is a premium precision bearing designed for high-speed applications requiring simultaneous radial and axial load handling. This standard arrangement bearing combines reliable performance with robust construction, making it ideal for gearboxes, electric motors, spindles, and other demanding mechanical equipment.
Specifications:
- Reference: 7206-BEP
- Brand: SKF
- Bore Diameter: 30mm
- Outer Diameter: 62mm
- Width: 16mm
- Row Type: Single row
- Contact Angle: 40 degrees
Key Features:
- Cage: Polyamide cage for reliable operation and reduced weight
- Material: Standard bearing steel for durability and performance
- Radial Clearance: Normal clearance
- Seal Type: Open bearing (no seal)
- Outer Ring: Without flange or groove
- Tolerance Class: P0/PN2 (ABEC 1) for precision applications
- Operating Temperature Range: -20°C to +120°C
The 40-degree contact angle provides excellent support for combined radial and axial loads, while the normal radial clearance ensures optimal performance in standard applications. This bearing is ideal for precision machinery, automotive components, industrial equipment, and general engineering applications requiring reliable, high-speed operation.
