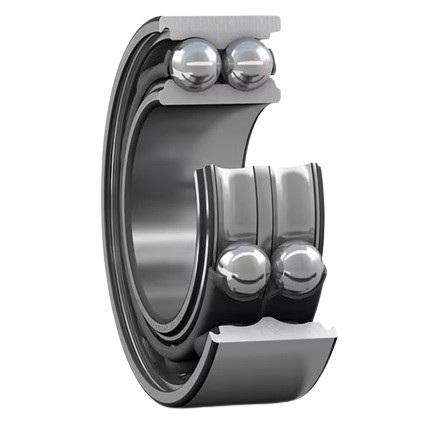

3317-A SKF Double Row Angular Contact Ball Bearing
3317-A SKF Double Row Angular Contact Ball Bearing
This premium SKF double row angular contact ball bearing is engineered to handle combined radial and axial loads in both directions, making it ideal for high-speed precision applications requiring superior load capacity. As a product from SKF, the world's largest bearing manufacturer, this bearing meets the highest quality standards and is trusted across numerous industries.
Key Specifications:
- Bore Diameter: 85mm
- Outside Diameter: 180mm
- Width: 73mm
- Row Type: Double row for enhanced load carrying capacity
- Contact Angle: 30 degrees for optimised radial and axial load distribution
- Arrangement: Standard version
- Radial Clearance: Normal
- Tolerance Class: P0/PN2 / ABEC 1
Construction Features:
- Material: Standard bearing steel for durability and reliability
- Cage: Sheet steel cage for robust performance
- Seal: Open design (no seals) for applications requiring direct lubrication access
- Outer Ring: Without flange or groove for flexible installation options
- Operating Temperature Range: -20°C to +150°C
Typical Applications:
This bearing is suitable for use in gearboxes, machine tool spindles, automotive transmissions, industrial motors, pumps, and other heavy-duty equipment requiring precision under combined bidirectional loading conditions. The double row design makes it particularly ideal for applications where high radial and axial load capacity is essential.
