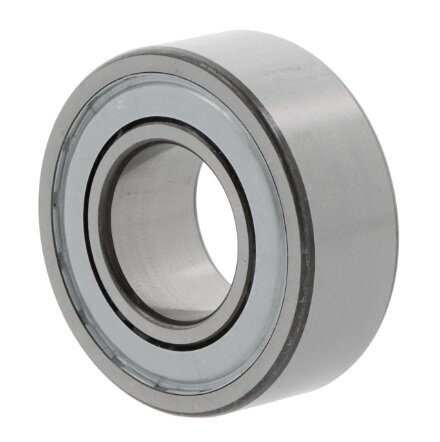

3211-BD-XL-2Z-TVH-C3 FAG Double Row Angular Contact Ball Bearing 55mm x 100mm x 33.3mm
3211-BD-XL-2Z-TVH-C3 FAG Double Row Angular Contact Ball Bearing
This premium double row angular contact ball bearing from FAG is engineered to deliver exceptional performance in demanding industrial applications requiring simultaneous radial and axial load handling. The 3211-BD-XL-2Z-TVH-C3 combines precision engineering with robust construction, making it ideal for high-speed applications where reliability and consistent performance are essential.
Key Features:
- Double row angular contact design for superior load capacity in both radial and axial directions
- 30° contact angle optimised for balanced load distribution and high-speed operation
- Polyamide cage ensuring lightweight, durable ball positioning and smooth operation
- Double-sided cover design protecting against contamination while maintaining effective lubrication
- Slightly increased radial clearance (C3) accommodating thermal expansion and providing flexibility in demanding conditions
- Standard bearing steel construction guaranteeing durability and extended service life
- Universal mounting design enabling flexible installation configurations
- Precision tolerance class P6/ABEC 3 for accurate and reliable performance
Specifications:
- Bore Diameter: 55mm
- Outer Diameter: 100mm
- Width: 33.3mm
- Type: Double Row Angular Contact Ball Bearing
- Contact Angle: 30°
- Cage Type: Polyamide cage
- Radial Clearance: Slightly increased (C3)
- Seal Type: Covers on both sides (2Z)
- Outer Ring: Without flange/groove
- Tolerance Class: P6/ABEC 3
- Temperature Range: -30°C to +120°C
- Arrangement: Standard version
- Material: Standard bearing steel
- Manufacturer: FAG
- Reference Number: 3211-BD-XL-2Z-TVH-C3
Applications:
Perfect for use in gearboxes, electric motors, pump and compressor assemblies, spindle systems, and industrial machinery requiring efficient handling of combined radial and axial loads. The double row configuration and sealed design make this bearing particularly suitable for precision machine tools, automotive drivetrains, and heavy-duty equipment operating at moderate to high speeds. The C3 clearance and thermal operating range of -30°C to +120°C ensure reliable performance across diverse environmental conditions, making it an excellent choice for applications demanding superior load capacity, precision, and contamination protection.
