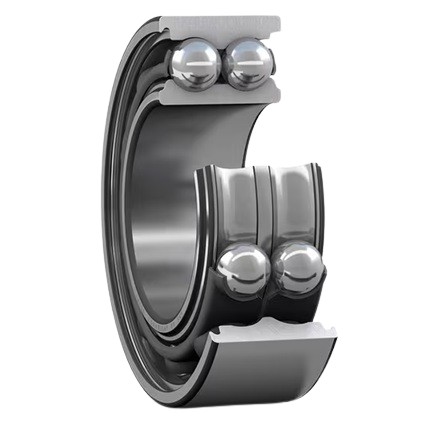

3206-A SKF Double Row Angular Contact Ball Bearing
3206-A SKF Double Row Angular Contact Ball Bearing
This premium double row angular contact ball bearing from SKF is engineered to handle simultaneous radial and axial loads in both directions, delivering exceptional performance for demanding high-speed and precision applications. As a world-leading bearing manufacturer, SKF maintains rigorous engineering standards ensuring reliability across diverse industrial environments.
Key Features:
- Double row configuration for superior load capacity in both directions
- 30° contact angle for optimal load distribution and high-speed performance
- Bore diameter: 30mm
- Outer diameter: 62mm
- Width: 23.8mm
- Sheet steel cage design for reliable, smooth operation
- Normal radial clearance for standard applications
- Open bearing design (unsealed) for unrestricted operation and easy maintenance
- Standard arrangement version with non-separable design for secure installation
- Standard bearing steel construction for durability and longevity
- Tolerance class P0/PN2 (ABEC 1) for precision applications
- Operating temperature range: -20°C to +150°C
- Outer ring without flange or groove for flexible mounting options
Applications:
This versatile double row bearing is ideal for a wide range of industrial applications including:
- Gearboxes and transmission systems
- Machine tool spindles
- Electric motors and pumps
- High-speed precision machinery
- Automotive and industrial equipment
- Applications requiring combined bidirectional radial and axial load capacity
The compact 30mm bore size combined with the double row configuration makes this bearing particularly suitable for space-constrained applications where high load capacity and precision are essential.
Reference Number: 3206-A SKF
