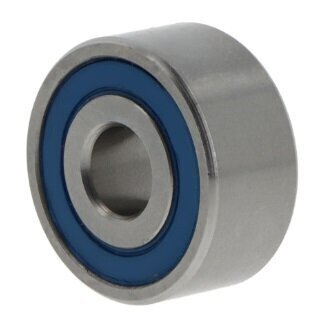

3205-B-2RS-TV NKE Double Row Angular Contact Ball Bearing 25mm x 52mm x 20.6mm
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Axial Angular Contact Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
NKE
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
32 degree
Inside Dia
25mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
52mm
Row Type
Double
Seal
Lip seal on both sides
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
20.6mm
Reference
3205-B-2RS-TV
Additional Reference:
10055469
Quick Order Code
BB-499743
Product Description
The 3205-B-2RS-TV NKE Double Row Angular Contact Ball Bearing is a premium precision bearing engineered for demanding applications requiring simultaneous radial and axial load capacity. This compact yet robust bearing combines superior performance with reliable sealing protection.
Key Specifications:
- Bore Diameter: 25mm
- Outer Diameter: 52mm
- Width: 20.6mm
- Manufacturer: NKE
- Row Configuration: Double row design for enhanced load capacity
- Contact Angle: 32 degrees for optimized radial and axial load distribution
Technical Features:
- Sealing: Lip seal on both sides (2RS) for protection against contaminants and moisture
- Cage Material: Polyamide cage for reduced weight and improved performance
- Clearance: Normal radial clearance
- Tolerance Class: P0/PN2 (ABEC 1) for precision performance
- Material: Standard bearing steel construction
- Operating Temperature Range: -20°C to +120°C
- Outer Ring: Standard design without flange or groove
Ideal Applications:
This bearing is well-suited for high-speed precision applications including gearboxes, machine tool spindles, electric motors, pumps, and other heavy-duty equipment where combined radial and axial loading is present. The sealed design makes it particularly effective in challenging environmental conditions.
NKE's reputation for quality and reliability ensures consistent performance and extended service life in demanding industrial environments.
