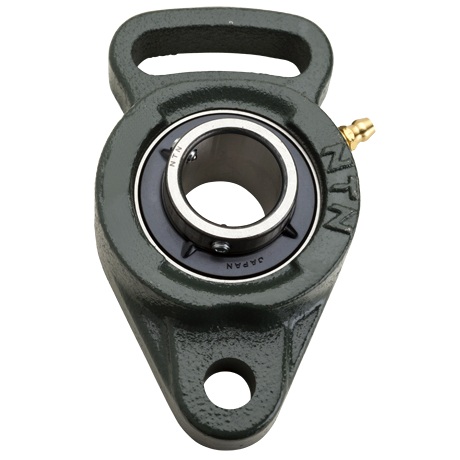

UCFA203 D1 NTN Take Up Unit with 17mm Bore Insert
Also Try
RHP Housed Bearings
Bearing Inserts
SKF Housed Bearings
4 Bolt Flanged Bearings
2 Bolt Flanged Bearings
Angular Contact Bearings
Stainless Steel 3-Way L-Port Ball Valve with ISO Mounting Pad
Buy Now
Product Specification
Bore Size
17mm
Brand
NTN
Colour
Green
Fixing
Threaded pins
Material
Cast iron, bearing made of standard bearing steel
Outer Dimension
60mm
Seal
Seal with a flinger shield
Temperature Range
-20 to +120 deg C
Reference
UCFA203D1
Additional Reference:
10121234
Quick Order Code
BB-515159
Product Description
The UCFA203 D1 NTN Take-up housing unit is a light duty, 2-bolt rhombus flanged bearing unit designed for applications requiring reliable tensioning and adjustable positioning. Featuring a cast iron housing paired with a self-aligning ball bearing insert, this unit is ideal for swivel movement applications such as conveyor systems and material handling equipment.
Take-up units like this are commonly used where tensioning is required, allowing for easy adjustment along the mounting slot to maintain correct belt or chain tension over time.
Key Features
- Type: 2-Bolt Rhombus Flanged Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw (threaded pins)
- Seal Type: Contact seal with a flinger shield
- Seal Material: Nitrile Rubber
- Version: For swivel movement
- Colour: Green
- Lubrication: Relubricatable
Component Details
- Bearing Number: UC203D1
- Housing Number: FA204D1
- Housing Material: Cast Iron (bearing made of standard bearing steel)
- Housing Construction: 1 Piece
- End Type: Open
- Performance: Light Duty
Performance Specifications
- Dynamic Load Rating: 12.80 kN (12800 N / 2880 lbf)
- Static Load Rating: 6.65 kN (6650 N / 1500 lbf)
- Maximum Rotational Speed: 8000 RPM
- Operating Temperature Range: -40 to 120 ºC (-40 to 250 ºF)
