Quick Code: BB-522384

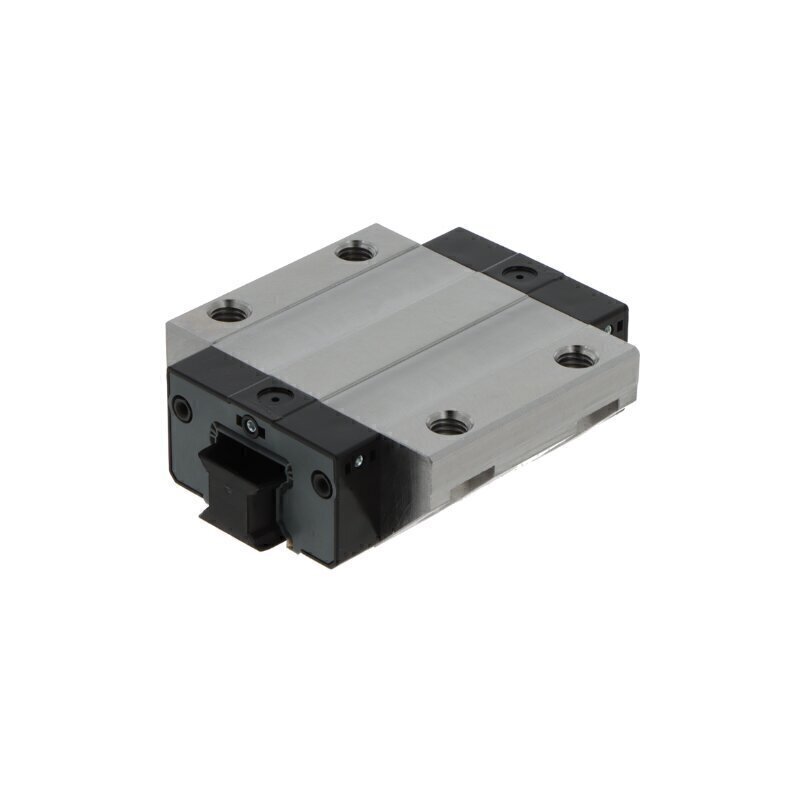

SHW27 CANSSC1 THK Carriage
The SHW27 CANSSC1 THK Carriage is a precision linear motion component engineered as a flange carriage for applications requiring smooth, accurate movement with optimized low-profile design. This carriage from THK's 27 series combines advanced engineering with a space-efficient configuration, making it ideal for machinery where compact height and reliable performance are essential.
Key Features:
- Flange Carriage Design: Flange-mounted configuration provides secure fastening and direct integration with mounting surfaces, ideal for applications requiring stable, fixed installation
- Low-Profile Design: Compact low design reduces overall height while maintaining excellent load capacity and precision, perfect for space-constrained applications
- Four-Row Ball Configuration: Four rows of ball rolling elements deliver superior load distribution, enhanced rigidity, and smooth, precise linear motion
- Ball Chain Integration: Integrated ball chain improves recirculation efficiency and performance in continuous-duty applications, ensuring consistent operation
- Light Preload: Optimized light preload provides reduced friction and smooth operation while maintaining adequate rigidity for accurate positioning
- Advanced Sealing System: Triple sealing protection featuring end seals, sealing strips, and inner seals to safeguard against contamination in challenging industrial environments
- Durable Construction: Premium steel and plastic materials engineered for longevity and reliable performance in demanding applications
- Convenient Maintenance: Relubrication capability via lubrication nipple enables easy upkeep and extended service life
- Precise Tolerances: Normal precision tolerance class ensures consistent accuracy for industrial applications
- Wide Temperature Operation: Operates reliably across -20 to +80°C temperature range for diverse industrial environments
Typical Applications:
The SHW27 CANSSC1 is well-suited for compact automated machinery, precision assembly systems, CNC machining centers, industrial robots, semiconductor manufacturing equipment, medical device assembly, material handling systems, and other applications where low-profile flange-mounted guidance with excellent load capacity and precision are essential.
Reference: SHW27CANSSC1 | Brand: THK | Series: 27
