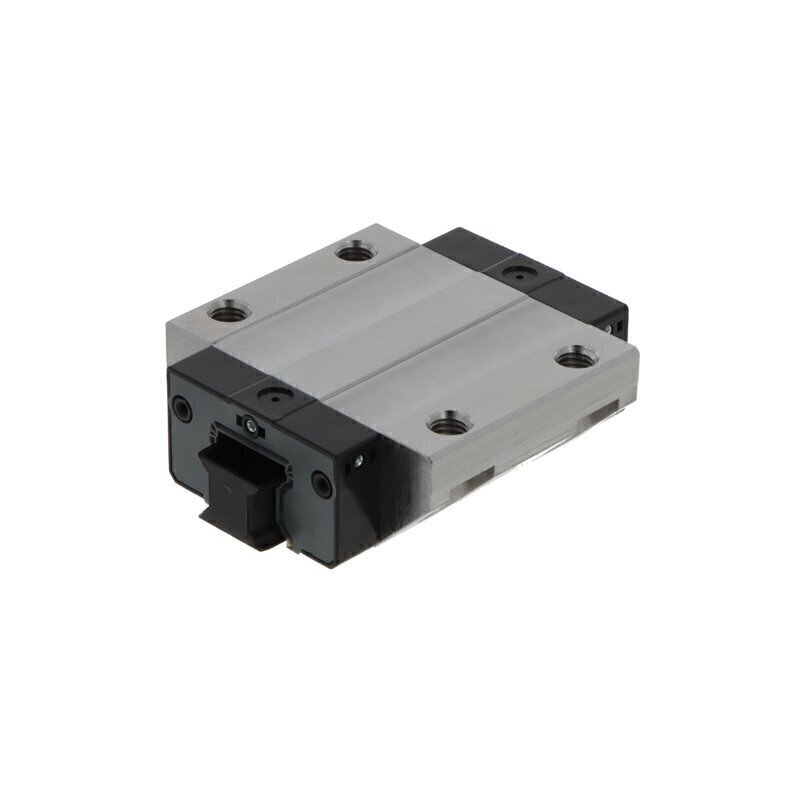

SHW27 CANSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
27 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Low design
Reference
SHW27CANSS
Additional Reference:
10142384
Quick Order Code
BB-522383
Product Description
The SHW27 CANSS THK Carriage is a precision linear motion component engineered for demanding industrial applications requiring smooth, accurate movement along THK linear guide rails. This flange carriage combines advanced engineering with robust construction, featuring a low design configuration ideal for space-constrained installations while maintaining exceptional load-carrying capability.
Key Features:
- Series & Design: 27 series flange carriage with low design configuration for compact mounting in applications with limited vertical clearance
- Rolling Elements: Four-row ball arrangement with integrated ball chain recirculation system for superior load distribution and consistently smooth operation
- Precision & Tolerance: Normal class tolerance with normal preload settings, balancing accuracy with operational flexibility across varying operational speeds
- Construction Materials: Durable steel and plastic composite construction for optimal strength-to-weight ratio and enhanced corrosion resistance
- Sealing System: Comprehensive contamination protection featuring end seals, sealing strips, and inner seals to maintain performance in challenging and dust-prone environments
- Lubrication: Relubrication capability via lubrication nipple for convenient maintenance and extended service life
- Operating Temperature Range: -20 to +80°C, suitable for both temperature-controlled indoor environments and variable industrial settings
Applications:
Ideal for low-profile automation systems, compact machinery, industrial equipment with restricted vertical space, manufacturing automation, and precision industrial applications where flange mounting, reliable linear motion, and space efficiency are essential.
