Quick Code: BB-524533

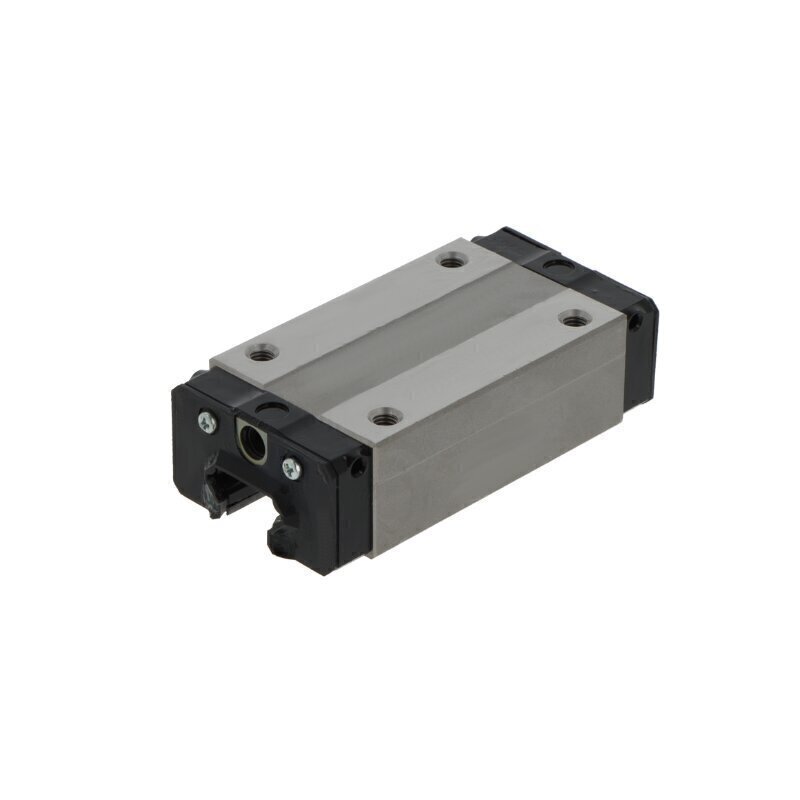

SHS30 LVQZDDHH THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Block carriage
Lubrication & Maintenance
With lubrication system
Material
Steel, Plastic
Preload
Normal preload
Seal
Double-End Seals, Sealing Strips and Inner Seals
Series
30 series
Temperature range
-20 to +80 °C
Tolerance class
H (High-Precision Class)
Type of rolling elements
Balls
Version
Small and long design
Reference
SHS30LVQZDDHH
Additional Reference:
10149502
Quick Order Code
BB-524533
Product Description
The SHS30 LVQZDDHH THK Carriage is a precision linear motion component engineered for demanding industrial applications requiring exceptional accuracy and reliability. This block carriage combines advanced design features with robust construction to deliver smooth, consistent performance in high-precision automation systems.
Key Features:
- Series & Design: 30 series block carriage with small and long design configuration
- Rolling Elements: Four-row ball type rolling elements for enhanced load capacity and stability
- Ball Chain: Equipped with ball chain for optimized recirculation and extended service life
- High-Precision Tolerance: H-class (High-Precision Class) for tight tolerances and superior accuracy
- Preload: Normal preload setting for balanced performance and minimal play
- Sealing Protection: Comprehensive sealing system featuring double-end seals, sealing strips, and inner seals to protect against contamination
- Lubrication System: Integrated lubrication system for reduced maintenance and consistent performance
- Construction: Durable steel and plastic materials for longevity and corrosion resistance
- Operating Temperature: -20 to +80°C, suitable for diverse environmental conditions
Ideal Applications:
The SHS30 LVQZDDHH carriage is particularly well-suited for precision machinery, CNC equipment, semiconductor manufacturing, laboratory automation, and other applications where smooth, accurate linear motion with minimal play is essential.
Reference: SHS30LVQZDDHH | Brand: THK
