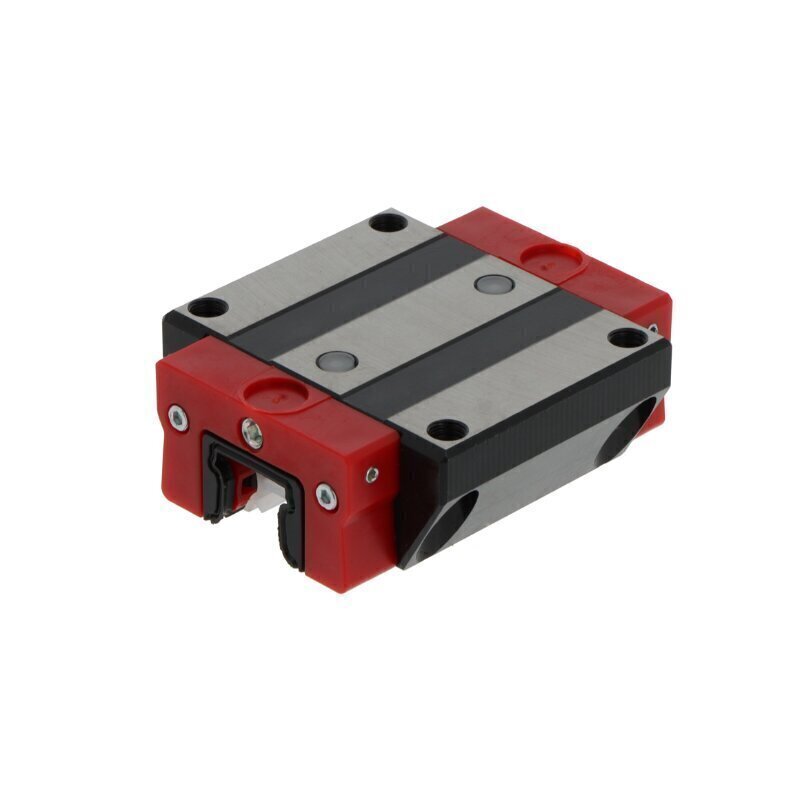

SHS30 CQZSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Flange carriage
Lubrication & Maintenance
With lubrication system
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
30 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Standard version
Reference
SHS30CQZSS
Additional Reference:
10142316
Quick Order Code
BB-522362
Product Description
The SHS30 CQZSS THK Carriage is a precision linear motion component engineered for versatile industrial applications requiring reliable performance and moderate load capacity. Part of THK's 30 series, this flange carriage delivers exceptional accuracy and smooth movement, making it an ideal solution for a wide range of automation and positioning systems.
Key Features:
- Moderate Load Capacity: Series 30 sizing provides balanced load-bearing capabilities suitable for general to heavy-duty industrial applications
- Flange Design: Flange carriage configuration enables versatile mounting options and flexible installation configurations
- Four-Row Ball Elements: Four-row ball arrangement ensures superior load distribution and consistent, precise linear motion
- Ball Chain Integration: Integrated ball chain enhances recirculation efficiency and maintains smooth operational performance
- Integrated Lubrication System: Built-in lubrication system provides convenient maintenance and extended service life without requiring external lubrication nipples
- Comprehensive Sealing System: Multiple seal options including end seals, sealing strips, and inner seals provide robust contamination protection suitable for challenging industrial environments
- Durable Construction: Steel and plastic materials combine strength with wear resistance for long-term reliability
- Normal Preload: Optimized for balanced performance between precision and operational smoothness
- Wide Operating Temperature: Functions reliably across -20 to +80°C temperature range for diverse environmental conditions
- Normal Tolerance Class: Meets standard precision requirements for most industrial applications
Ideal Applications:
The SHS30 CQZSS carriage is particularly well-suited for:
- Medium to large-format automation systems
- Industrial machinery and equipment requiring moderate to heavy loads
- Packaging and material handling systems
- Precision positioning and linear motion control applications
- Manufacturing equipment where reliable, consistent motion is essential
- Systems requiring integrated lubrication for reduced maintenance
This carriage seamlessly integrates with THK linear guide rails to provide exceptional accuracy and smooth movement across a wide range of industrial applications requiring dependable precision linear motion.
Brand: THK | Reference: SHS30CQZSS
