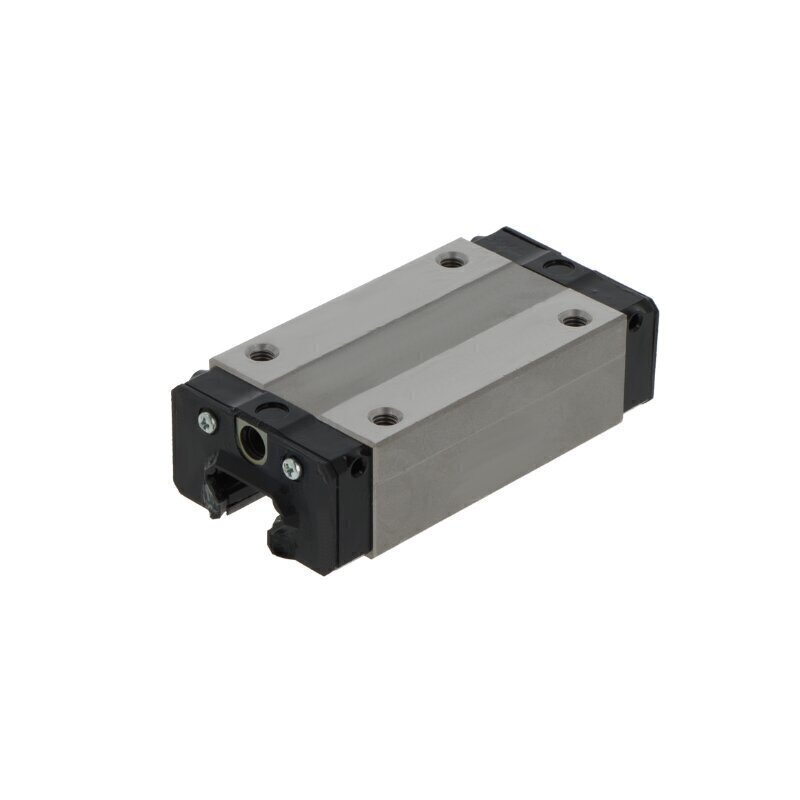

SHS25 LVQZSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
INA Carriages
NSK Carriages
Schneeberger Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Block carriage
Lubrication & Maintenance
With lubrication system
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
25 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Small and long design
Reference
SHS25LVQZSS
Additional Reference:
10142313
Quick Order Code
BB-522360
Product Description
The SHS25 LVQZSS THK Carriage is a precision linear motion component engineered to deliver smooth, accurate movement in demanding industrial applications. As part of THK's renowned 25 series, this block carriage combines advanced design features with robust construction to ensure reliable performance across diverse operating conditions.
Key Features:
- Four-Row Ball Configuration: Equipped with four rows of ball rolling elements for superior load distribution and enhanced stability
- Small and Long Design: Optimized geometry provides excellent versatility for space-constrained installations while maintaining extended load capacity
- Integrated Ball Chain: Includes ball chain recirculation system for smooth, continuous motion and extended service life
- Comprehensive Sealing System: Features end seals, sealing strips, and inner seals to provide maximum contamination protection in harsh environments
- Advanced Lubrication: Integrated lubrication system ensures consistent performance with reduced maintenance requirements
- Durable Construction: Manufactured from high-quality steel and plastic materials for exceptional durability and corrosion resistance
- Normal Preload: Balanced preload setting optimizes performance for standard applications
- Normal Precision Tolerance: Meets stringent accuracy requirements for most industrial applications
- Wide Temperature Range: Operates reliably from -20°C to +80°C, making it suitable for diverse environmental conditions
Ideal Applications:
The SHS25 LVQZSS carriage is well-suited for machinery requiring compact linear motion solutions, including packaging equipment, automation systems, semiconductor manufacturing devices, and precision positioning applications where space optimization and load capacity are critical factors.
