Quick Code: BB-531380

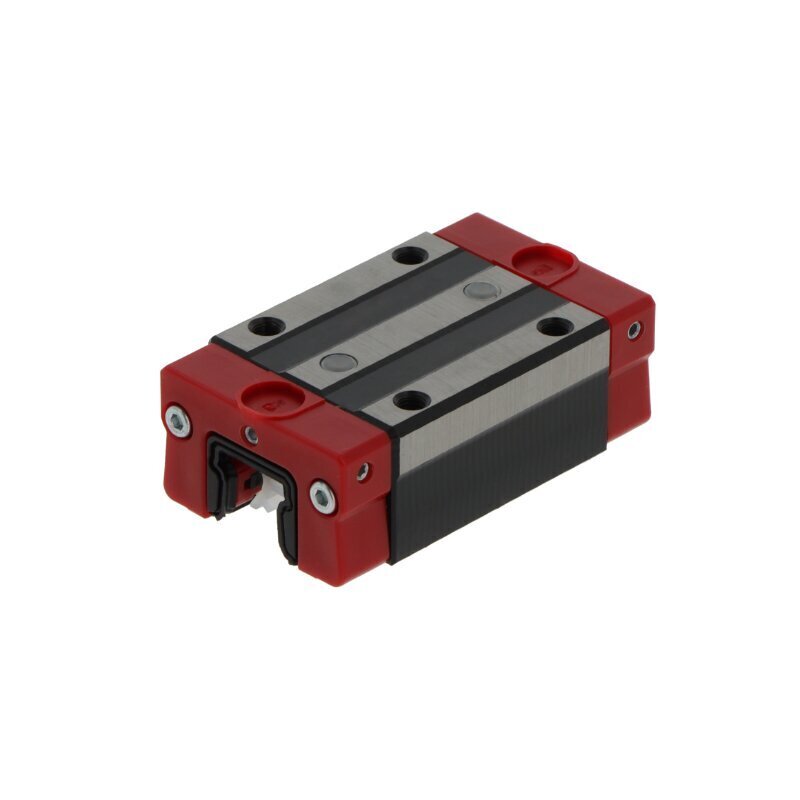

HSV35 LRSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
35 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Standard version
Reference
HSV35LRSS
Additional Reference:
10190281
Quick Order Code
BB-531380
Product Description
The HSV35 LRSS THK Carriage is a precision linear motion component engineered to deliver reliable, smooth movement in demanding industrial applications. Part of THK's versatile 35 series, this block carriage combines robust performance with practical design, making it an excellent choice for applications requiring dependable linear motion with balanced load capacity and accuracy.
Key Features:
- Design: Block carriage configuration for versatile mounting and integration flexibility
- Rolling Elements: Four-row ball arrangement for superior load distribution and consistent precision motion
- Construction: Durable steel and plastic materials engineered to withstand rigorous industrial use and continuous operation
- Preload: Normal preload for balanced performance, smooth operation, and extended service life
- Sealing System: Comprehensive triple-seal protection featuring end seals, sealing strips, and inner seals to effectively shield against contamination and debris in demanding environments
- Lubrication: Convenient relubrication capability via lubrication nipple for easy on-site maintenance and extended component lifespan
- Tolerance Class: Normal class precision for reliable, consistent performance across diverse applications
- Operating Temperature: Fully functional across -20 to +80°C, suitable for diverse climate conditions and industrial environments
- Configuration: Standard version without ball chain for straightforward integration with linear guide rails
Applications:
The HSV35 LRSS carriage is well-suited for a wide range of industrial applications including:
- Industrial automation and manufacturing equipment
- Precision machinery requiring smooth, accurate linear movement
- Material handling and conveyor systems
- CNC and automated machining centers
- Assembly line equipment and production systems
- General industrial applications where dependable linear motion is essential
This carriage seamlessly integrates with THK linear guide rails to provide exceptional accuracy and reliable performance, making it an ideal choice for applications demanding durability, precision, and low-maintenance operation.
Brand: THK | Reference: HSV35LRSS
