Quick Code: BB-531379

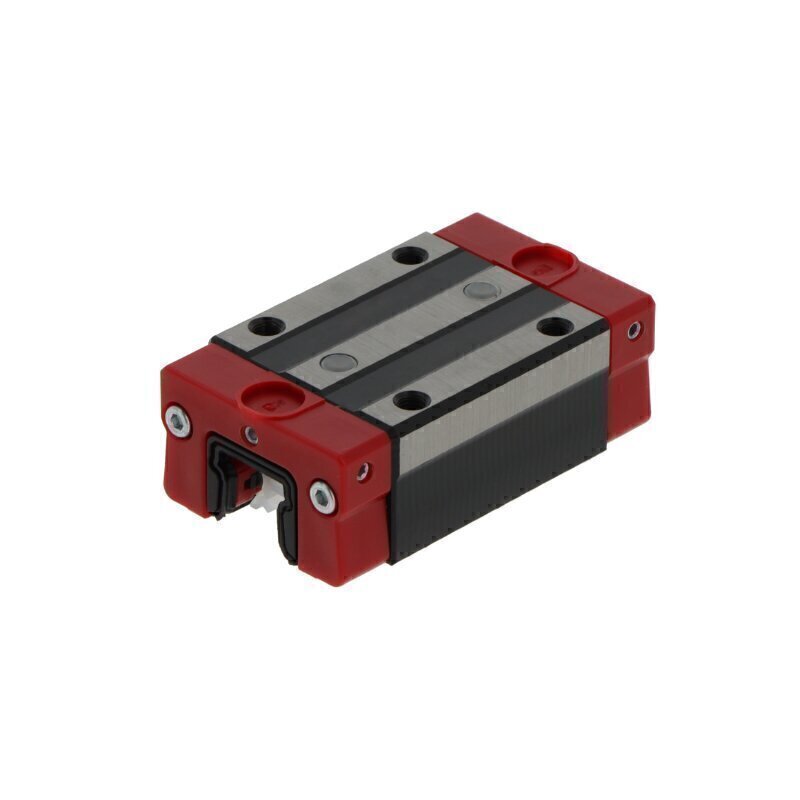

HSV30 LRSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
30 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Standard version
Reference
HSV30LRSS
Additional Reference:
10190280
Quick Order Code
BB-531379
Product Description
The HSV30 LRSS THK Carriage is a precision linear motion component engineered for seamless integration with THK linear guide rails. This block carriage delivers exceptional accuracy and smooth movement, making it ideal for a wide range of industrial applications requiring reliable linear motion control.
Key Features:
- Design: Block carriage configuration for versatile mounting options and compact installation
- Rolling Elements: Four-row ball type rolling elements for enhanced load distribution and smooth operation
- Series: Part of the proven 30 series lineup
- Material Construction: Durable steel and plastic materials for long-lasting performance and reliability
- Precision Class: Normal tolerance class suitable for standard industrial applications
- Preload: Normal preload option for optimal performance and stability
- Ball Chain: Without ball chain for simplified design and reduced complexity
Sealing & Protection:
- Comprehensive sealing system featuring end seals, sealing strips, and inner seals
- Multi-level contamination protection for extended component life in demanding environments
Maintenance & Lubrication:
- Relubrication capability via convenient lubrication nipple
- Designed for straightforward maintenance with simplified recirculation design
Operating Specifications:
- Temperature Range: -20 to +80°C, suitable for diverse industrial environments
- Standard Version: Ready-to-use configuration for immediate integration
The HSV30 LRSS is an excellent choice for applications demanding precision linear motion, including automation systems, machine tools, semiconductor equipment, material handling systems, and assembly line machinery.
