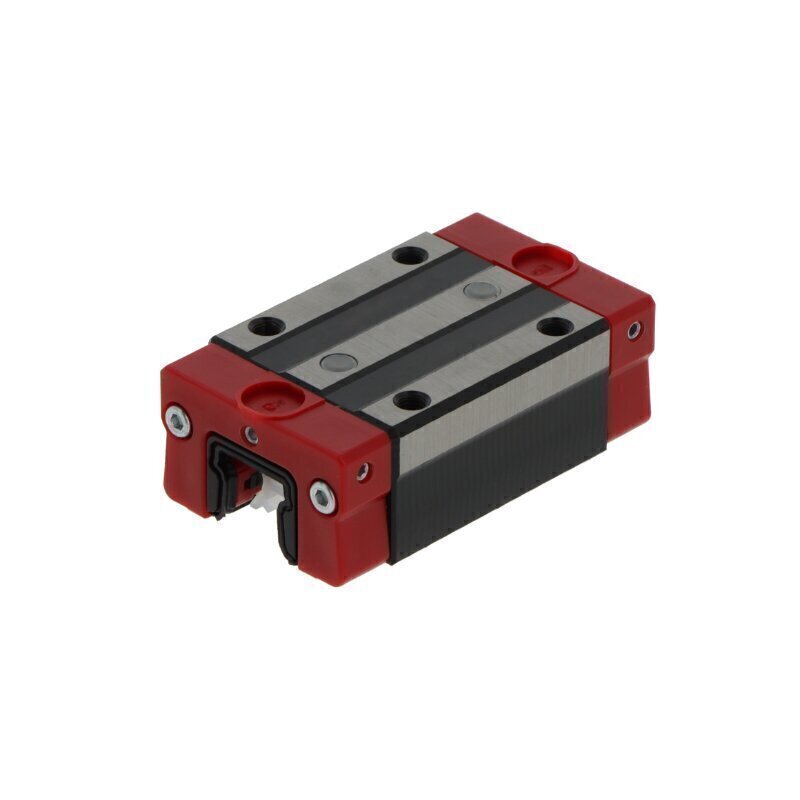

HSV15 LRSS THK Carriage
The HSV15 LRSS THK Carriage is a precision linear motion component engineered for versatile industrial applications requiring reliable performance and smooth linear movement. This block carriage delivers consistent accuracy and dependable operation when paired with THK linear guide rails, making it an ideal choice for automation systems, manufacturing equipment, and general industrial machinery.
Key Features:
- Design & Configuration: Block carriage configuration for flexible mounting and straightforward integration into compact and space-constrained applications
- Series: 15 series - engineered for applications with moderate load requirements and standard travel distances
- Rolling Elements: Four-row ball bearing arrangement for enhanced load capacity, superior rigidity, and excellent load distribution across multiple contact points
- Precision & Tolerance: Normal class tolerance with normal preload for consistent, reliable performance in standard industrial environments
- Sealing System: Comprehensive multi-stage protection featuring end seals, sealing strips, and inner seals to effectively safeguard against contamination and extend component life in challenging working conditions
- Lubrication & Maintenance: Relubrication capability via lubrication nipple system, allowing convenient periodic maintenance and extended bearing life without requiring component disassembly
- Construction Materials: Durable steel and plastic composition built to withstand industrial conditions and operational loads
- Operating Temperature Range: -20 to +80°C for reliable performance across varied climates and operational conditions
- Ball Chain: Standard design without ball chain for straightforward recirculation
Applications:
The HSV15 LRSS carriage is particularly well-suited for general-purpose automation systems, standard CNC equipment, light to moderate load machinery, assembly line equipment, and manufacturing systems where consistent precision and dependable performance are required. Its four-row ball configuration, comprehensive sealing protection, and relubrication system make it an excellent choice for reliable operation in typical industrial environments.
Brand: THK | Series: 15 Series | Reference: HSV15LRSS
