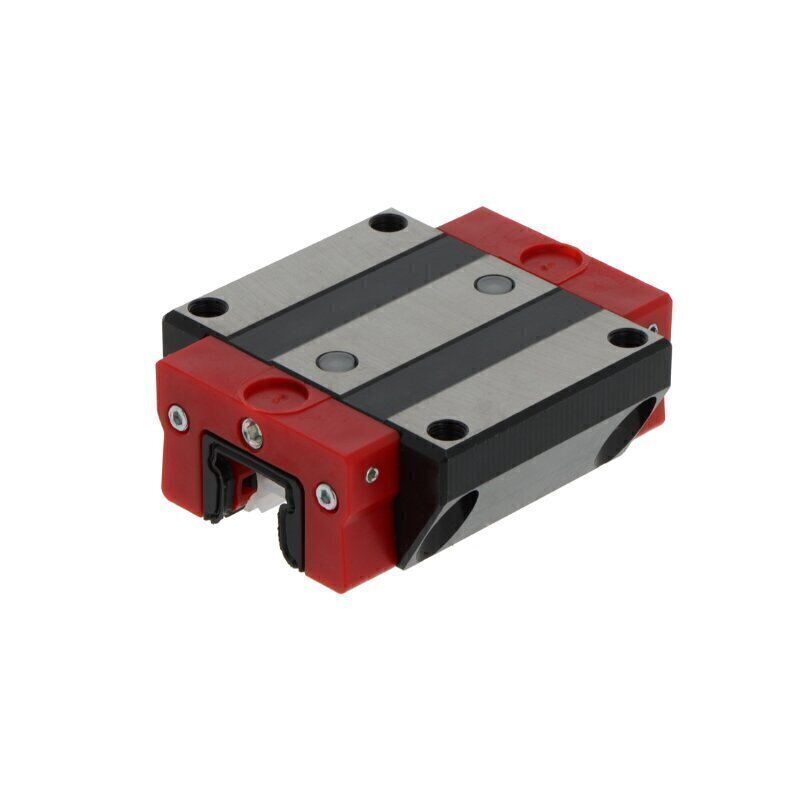

HSR20 CQZSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Flange carriage
Lubrication & Maintenance
With lubrication system
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
20 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Standard version
Reference
HSR20CQZSS
Additional Reference:
10160590
Quick Order Code
BB-527080
Product Description
The HSR20 CQZSS THK Carriage is a precision linear motion component engineered to deliver reliable performance and smooth operation for a wide range of industrial applications. This flange carriage combines THK's engineering expertise with a compact design suitable for applications requiring precision positioning and consistent motion control.
Key Features:
- Series & Design: 20 series flange carriage with standard version configuration for versatile mounting and installation flexibility
- Rolling Elements: Four-row ball type rolling elements delivering excellent load distribution and smooth, consistent linear motion
- Construction: Durable steel and plastic materials engineered for extended operational lifespan and reliable performance
- Sealing Protection: Comprehensive sealing system featuring end seals, sealing strips, and inner seals to protect against contamination and ensure optimal performance in challenging work environments
- Lubrication & Maintenance: Integrated lubrication system for convenient maintenance and sustained optimal performance throughout the carriage lifecycle
- Tolerance & Preload: Normal tolerance class with normal preload configuration for balanced performance and dependable reliability
- Operating Temperature: Functions reliably across -20 to +80°C temperature range for diverse environmental conditions
- Ball Chain: Supplied without ball chain for customized recirculation requirements
Ideal Applications:
The HSR20 CQZSS carriage is well-suited for precision linear motion systems including automated manufacturing equipment, industrial machinery, positioning systems, and material handling applications where reliable performance, compact design, and smooth operation are essential.
