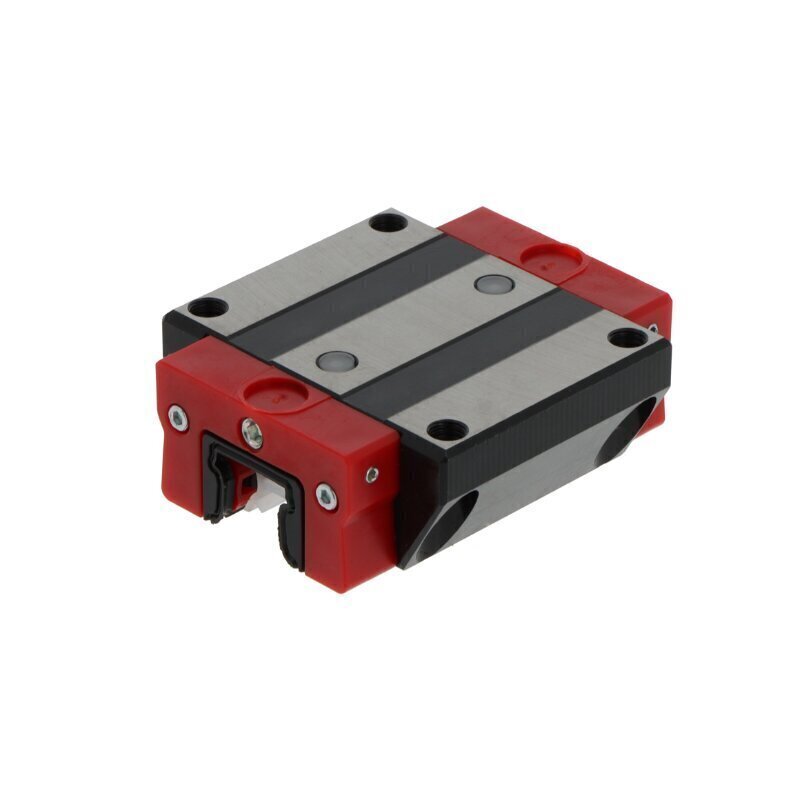

HSR15 CSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
15 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Standard version
Reference
HSR15CSS
Additional Reference:
10159657
Quick Order Code
BB-526922
Product Description
The HSR15 CSS THK Carriage is a precision linear motion component engineered to deliver smooth, accurate movement in demanding industrial applications. This compact flange carriage combines THK's renowned reliability with a versatile design, making it ideal for applications requiring precision guidance with space-efficient mounting solutions.
Key Features:
- Design & Configuration: Flange carriage design optimized for direct mounting to machinery frames and structural components, providing compact installation with excellent load distribution
- Rolling Elements: Four-row ball bearing arrangement for superior load capacity and smooth operation across multiple planes, ensuring stable and consistent motion
- Material Construction: Durable steel and plastic composition engineered to withstand rigorous operational demands while providing strength and corrosion resistance
- Preload & Tolerance: Normal preload with normal class tolerance, providing reliable performance across standard industrial requirements
- Comprehensive Sealing System: Triple protection featuring end seals, sealing strips, and inner seals to shield against contamination and extend component life in challenging environments
- Lubrication: Relubrication capability via lubrication nipple for convenient maintenance and extended service intervals
- Operating Temperature Range: Reliable performance within -20 to +80°C range, suitable for both climate-controlled and harsh industrial environments
- Ball Chain: Supplied without ball chain for flexible integration options
Applications:
The HSR15 CSS carriage is well-suited for:
- Compact automated machinery and assembly systems
- Precision positioning equipment with moderate load requirements
- Industrial robots and material handling equipment
- CNC machines and machining centers
- Packaging and labeling systems
- Semi-protected industrial environments with exposure to dust and moisture
- Manufacturing equipment requiring space-efficient mounting solutions
Reference: HSR15CSS | Brand: THK | Series: 15
