Quick Code: BB-522378

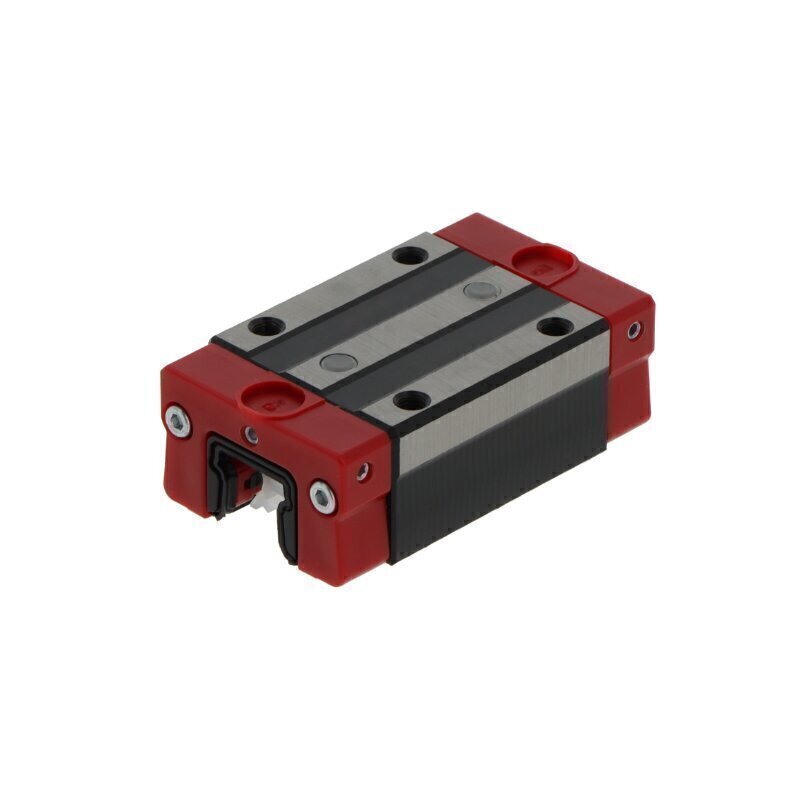

HRW27 CRSSC1 THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
27 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Standard version
Reference
HRW27CRSSC1
Additional Reference:
10142377
Quick Order Code
BB-522378
Product Description
The HRW27 CRSSC1 THK Carriage is a precision linear motion component engineered for seamless integration with THK linear guide rails. This block carriage design delivers exceptional accuracy and smooth movement, making it ideal for a wide range of industrial applications requiring reliable linear motion solutions with optimized load distribution.
Key Features:
- Block Carriage Design: Standard block carriage configuration provides robust support and stable positioning for demanding industrial environments
- Four-Row Ball Arrangement: Four-row ball type rolling elements enable superior load distribution and consistent performance across varying operational demands
- Durable Construction: Built from high-quality steel and plastic materials engineered for long-lasting reliability in demanding industrial settings
- Comprehensive Sealing Protection: End seals, sealing strips, and inner seals work together to protect against contamination and extend component life
- Easy Maintenance: Relubrication via lubrication nipple enables convenient ongoing maintenance and supports extended service intervals
- Optimized Preload: Light preload configuration provides reduced friction and smooth operation while maintaining precision alignment
- Broad Temperature Compatibility: Operates efficiently between -20 to +80°C, suitable for both temperature-controlled and variable industrial environments
- Without Ball Chain: Simplified design without integrated ball chain recirculation for streamlined construction and cost-effective performance
Specifications:
- Series: 27 Series
- Tolerance Class: Normal Class
- Version: Standard Version
Typical Applications:
The HRW27 CRSSC1 carriage is well-suited for automation systems, assembly machinery, packaging equipment, material handling systems, industrial machinery, and precision applications where reliable linear motion and stable block carriage support are essential.
Reference: HRW27CRSSC1 | Brand: THK | Series: 27 Series
