Quick Code: BB-531524

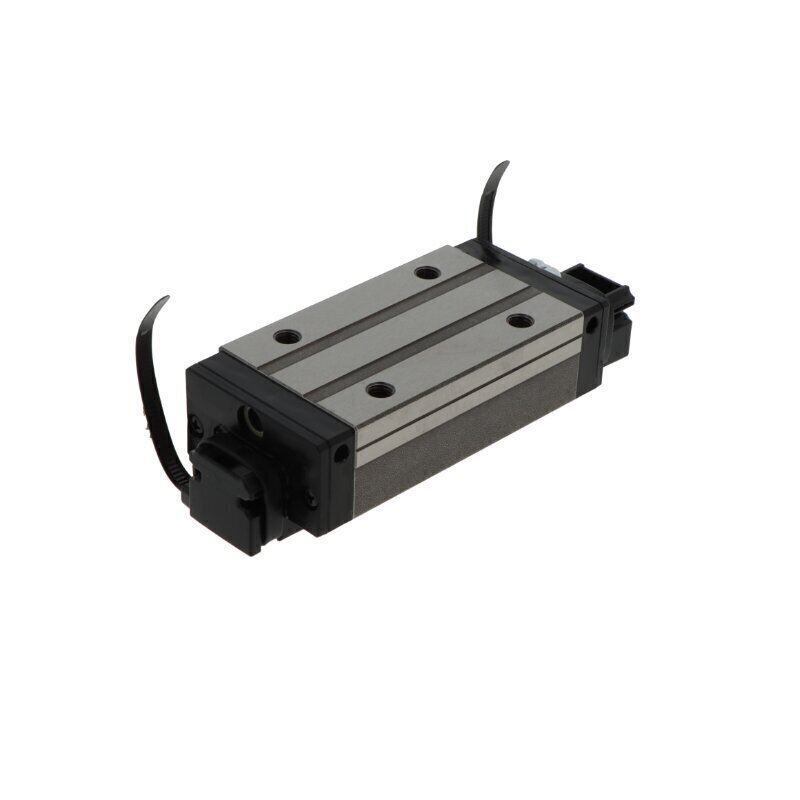

HDR45 LVSS THK Carriage
The HDR45 LVSS THK Carriage is a precision linear motion component engineered for demanding industrial applications requiring extended travel distances and low-profile installation. This block carriage from THK's 45 series combines a specialized low and long design with robust construction, making it an excellent choice for applications where space constraints and extended stroke lengths are critical design considerations.
Key Features:
- Low and Long Design: Specialized configuration that minimizes vertical profile while extending the carriage length, ideal for compact installations requiring substantial travel range
- Block Carriage Configuration: Versatile mounting design suitable for various orientation requirements and integration with THK linear guide rails
- Four-Row Ball Rolling Elements: Four-row ball arrangement delivers exceptional load distribution, smooth recirculation, and superior precision for demanding motion control applications
- Comprehensive Sealing System: Equipped with end seals, sealing strips, and inner seals to provide robust protection against contamination in challenging industrial environments
- Durable Construction: Steel and plastic materials combine excellent strength-to-weight ratio with reliable corrosion resistance for long-term performance
- Flexible Relubrication: Can be relubricated via convenient lubrication nipple for extended service life and reduced maintenance downtime
- Normal Preload: Optimized for balanced performance between precision and operational smoothness
- No Ball Chain Configuration: Standard design without ball chain for simplified assembly and streamlined maintenance
- Normal Precision Tolerance: Meets stringent accuracy requirements for industrial automation and precision machinery applications
- Wide Operating Range: Functions reliably across temperatures from -20 to +80°C for diverse industrial environments
Applications:
The HDR45 LVSS carriage is ideal for CNC machinery with extended travel requirements, industrial automation systems requiring compact vertical profiles, material handling equipment, long-stroke positioning systems, and other applications where a low-profile, extended-length carriage is essential for reliable precision performance and space-efficient installation.
Reference: HDR45LVSS | Brand: THK
