Quick Code: BB-531523

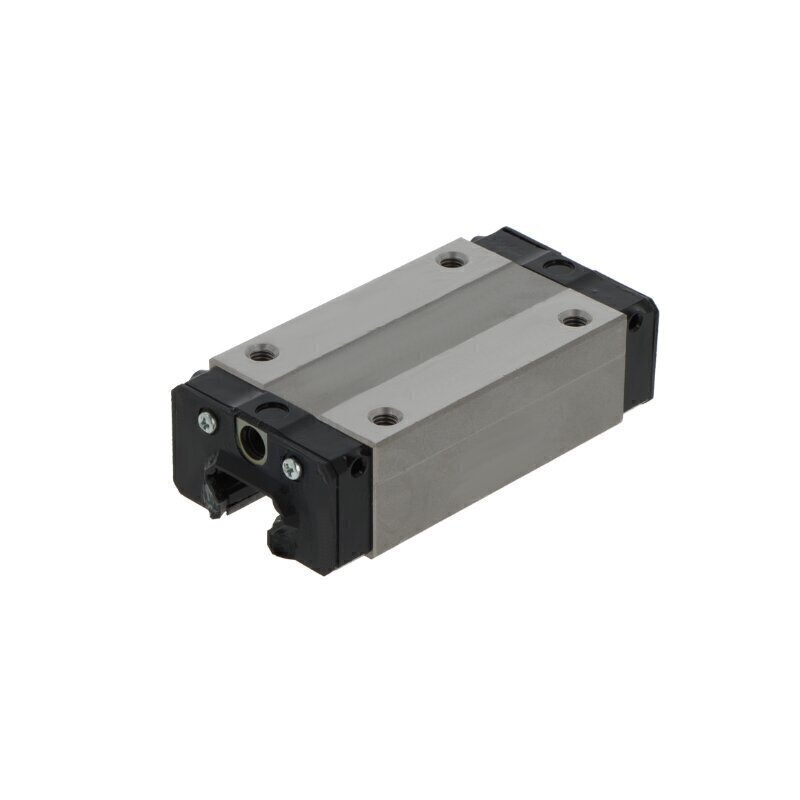

HDR45 LRSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
45 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Small and long design
Reference
HDR45LRSS
Additional Reference:
10192206
Quick Order Code
BB-531523
Product Description
The HDR45 LRSS THK Carriage is a precision linear motion component engineered for smooth, accurate movement in industrial automation and machinery applications. As part of THK's renowned 45 series, this block carriage delivers reliable performance across diverse operational environments with a compact, versatile design.
Key Features:
- Design & Construction: Block carriage configuration with small and long design options, built from durable steel and plastic materials for long-lasting performance and flexible installation requirements
- Rolling Elements: Four-row ball bearing arrangement providing excellent load capacity and smooth operation for demanding applications
- Precision & Tolerance: Normal class tolerance for dependable accuracy in standard industrial applications
- Preload: Normal preload setting optimized for balanced performance and operational smoothness
- Sealing System: Comprehensive sealing protection featuring end seals, sealing strips, and inner seals to prevent contamination and extend service life in challenging environments
- Lubrication: Convenient relubrication capability via lubrication nipple for easy maintenance and extended carriage life
- Temperature Range: Operates reliably from -20°C to +80°C, suitable for varied industrial environments
- Ball Chain: Supplied without ball chain for flexible integration with existing systems
Applications:
Ideal for use in machinery automation, industrial equipment, packaging systems, material handling, and general precision positioning applications where smooth linear motion, robust load capacity, and dependable performance are essential. The small and long design options make this carriage particularly versatile for both compact and extended travel requirements.
Reference: HDR45LRSS | Brand: THK
