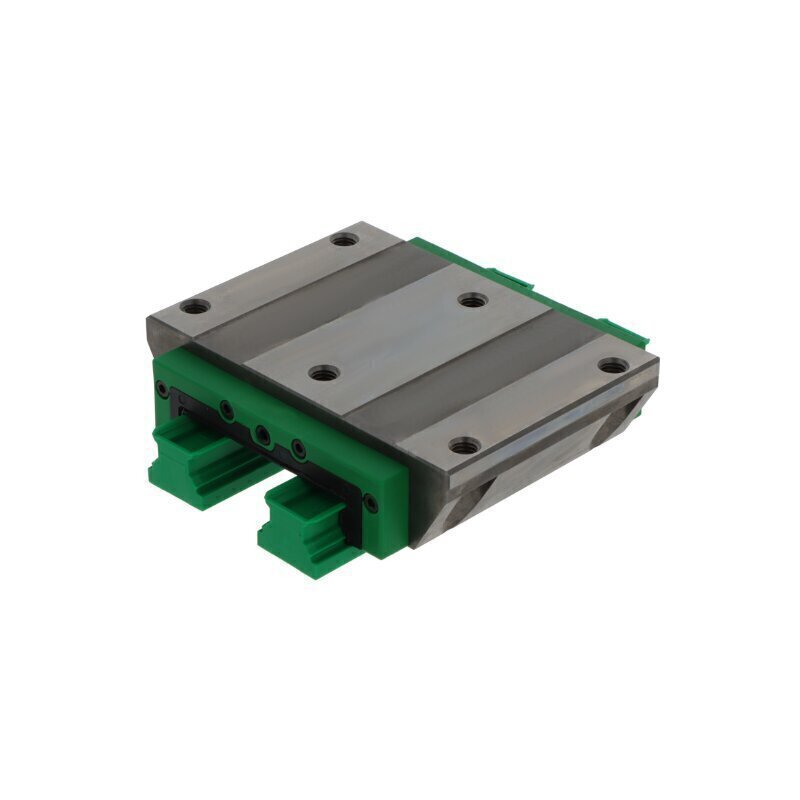

HDR45 LCSS THK Carriage
The HDR45 LCSS THK Carriage is a precision linear motion component engineered for heavy-duty applications requiring exceptional load capacity and reliable performance across demanding industrial environments. This flange carriage from THK's 45 series combines advanced design principles with robust construction, making it an ideal solution for applications where superior strength, stability, and extended operational life are critical.
Design & Construction
This carriage features a wide and long design configuration that optimizes load distribution, stability, and span capacity while maintaining excellent performance characteristics throughout its operational life. Constructed from durable steel and plastic materials, the HDR45 LCSS delivers exceptional strength and reliability suitable for the most demanding industrial applications requiring efficient performance and extended durability.
Key Performance Features
- Design: Flange carriage configuration for secure, versatile installation on THK linear guide rails in various mechanical systems
- Series: 45 series providing enhanced load capacity and stability for heavy-duty precision applications
- Four-row ball configuration: Provides exceptional load distribution, stability, and smooth operation for enhanced accuracy and durability in high-stress environments
- Ball-type rolling elements: Ensures smooth, quiet motion with minimal friction and consistent recirculation
- Normal class tolerance: Delivers reliable precision for general and specialized industrial requirements
- Normal preload: Maintains optimal ball contact for balanced performance between rigidity and operational smoothness
- Operating temperature range: -20 to +80°C – Suitable for diverse environmental conditions and temperature-sensitive applications
- Streamlined operation: Supplied without ball chain for simplified installation and reduced complexity
Sealing & Lubrication System
Advanced contamination protection is delivered through a comprehensive sealing system featuring end seals, sealing strips, and inner seals to effectively prevent debris ingress in challenging environments. The carriage features flexible lubrication via lubrication nipple for convenient on-site servicing, ensuring extended service life and reduced maintenance intervals while maintaining consistent performance.
Ideal Applications
The HDR45 LCSS THK Carriage is perfectly suited for heavy-duty industrial automation systems, large-format CNC machinery, heavy manufacturing equipment, precision assembly machinery, material handling systems with extended travel requirements, heavy-duty packaging equipment, and large-span positioning devices where robust linear motion performance, exceptional load capacity, and reliable precision are essential.
Reference: HDR45LCSS | Brand: THK | Series: 45 Series
