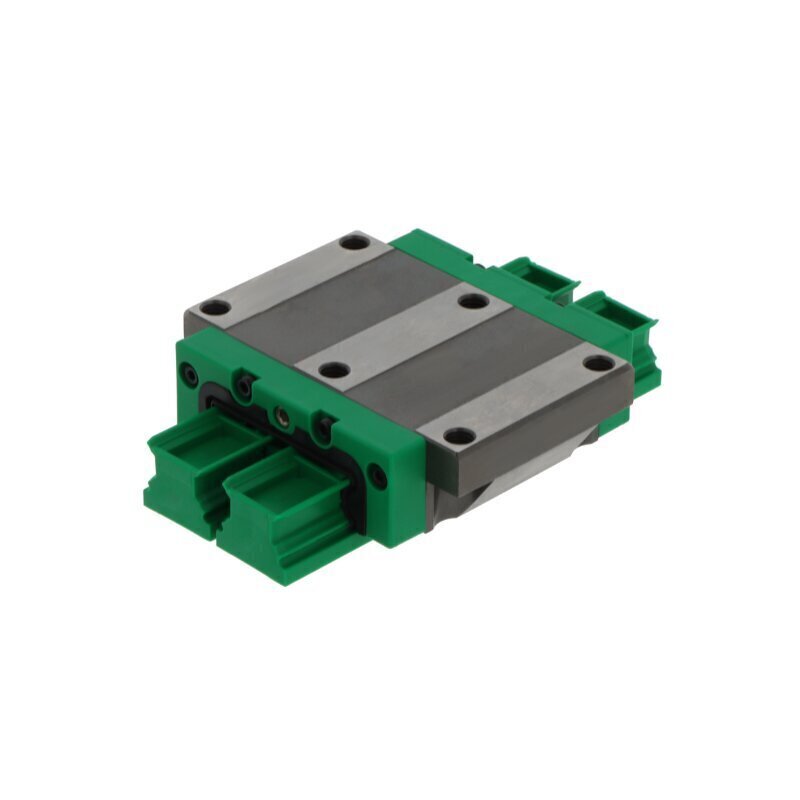

HDR45 CSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
45 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Wide design
Reference
HDR45CSS
Additional Reference:
10192198
Quick Order Code
BB-531519
Product Description
The HDR45 CSS THK Carriage is a precision linear motion component engineered for demanding industrial applications requiring smooth, accurate movement along THK linear guide rails. This wide design flange carriage combines robust construction with advanced sealing technology to deliver reliable performance in diverse operating environments.
Key Features:
- Design: Flange carriage configuration with wide design for enhanced stability and load distribution
- Rolling Elements: Four-row ball bearing system for superior load distribution and smooth motion
- Construction Materials: Durable steel and plastic composition providing strength and durability
- Preload: Normal preload for balanced performance between rigidity and operational smoothness
- Comprehensive Sealing System: Multiple sealing options including end seals, sealing strips, and inner seals to protect against contamination and extend component lifespan
- Maintenance: Relubrication capability via lubrication nipple for convenient on-site servicing and extended operational life
- Configuration: Supplied without ball chain for streamlined operation
- Series: 45 series design for optimal performance and load capacity
Performance Specifications:
- Operating Temperature Range: -20 to +80°C for reliable performance across diverse environmental conditions
- Tolerance Class: Normal precision class for reliable and consistent performance
- Brand: THK - recognized leader in precision linear motion technology
Ideal Applications:
The HDR45 CSS carriage is well-suited for industrial automation, machine tools, packaging equipment, and manufacturing systems where precision linear motion, enhanced stability, and reliable contamination protection are essential.
The HDR45 CSS is the ideal choice for applications demanding precision, durability, and ease of maintenance in a wide design carriage package.
