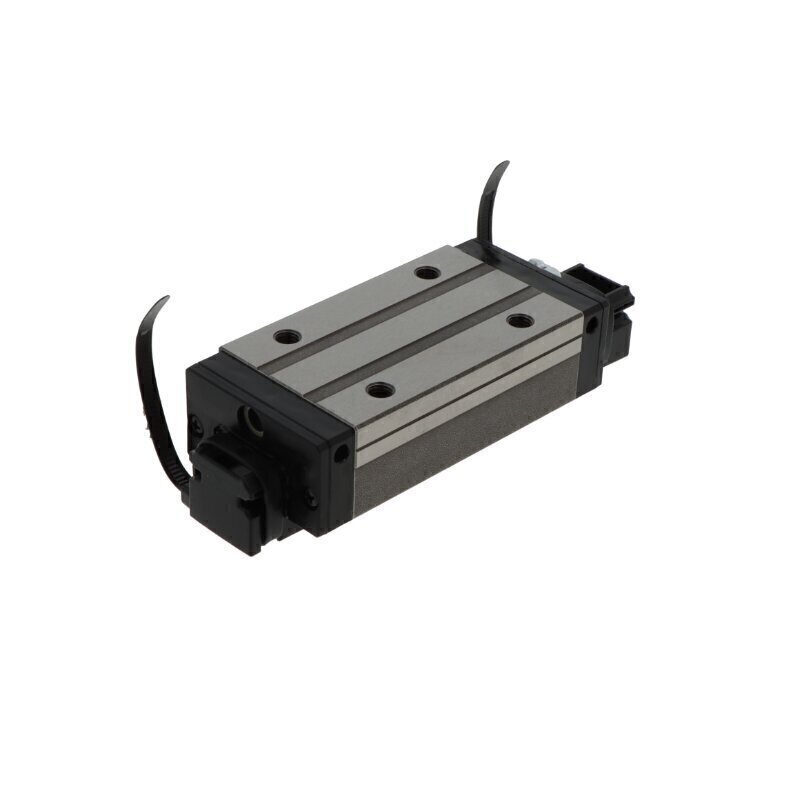

HDR35 LVSS THK Carriage
The HDR35 LVSS THK Carriage is a precision linear motion component engineered to deliver smooth, accurate movement in demanding industrial applications. As part of THK's 35 series, this block carriage combines robust engineering with advanced sealing technology to provide reliable performance across diverse operational environments.
Key Features:
- Design: Block carriage configuration with low and long design for versatile mounting options, extended travel capabilities, and compact vertical installation
- Series & Configuration: 35 series block carriage optimized for applications requiring both extended positioning range and space-efficient integration
- Rolling Elements: Four-row ball type arrangement for superior load distribution, stability, and smooth operation across multiple contact points
- Precision & Tolerance: Normal class tolerance with normal preload settings, balancing accuracy with operational flexibility and load capacity
- Construction Materials: Durable steel and plastic composite construction for optimal strength-to-weight ratio and reliable long-term performance
- Sealing System: Comprehensive triple-seal protection featuring end seals, sealing strips, and inner seals to prevent contamination and extend component life in challenging environments
- Ball Chain Configuration: Standard version without ball chain for straightforward installation and simplified integration
- Lubrication: Relubrication capability via lubrication nipple for convenient maintenance and extended service life
- Operating Temperature Range: -20 to +80°C, suitable for both heated and cold industrial environments
Applications:
The HDR35 LVSS THK Carriage is ideal for industrial applications demanding precision linear motion with extended stroke capability and space-constrained installations, including:
- Automated assembly and manufacturing systems
- Industrial machinery requiring smooth, reliable linear motion
- Material handling and positioning equipment
- Packaging machinery and production lines
- Manufacturing equipment with moderate load requirements
- Vertical and space-limited automation solutions requiring dependable performance
- Industrial automation systems requiring extended travel with compact footprint
This carriage seamlessly integrates with THK linear guide rails to provide exceptional accuracy and reliable performance across a wide range of industrial applications where robust linear motion with extended travel capability and space efficiency are essential.
Brand: THK | Series: 35 Series | Reference: HDR35LVSS
