Quick Code: BB-531510

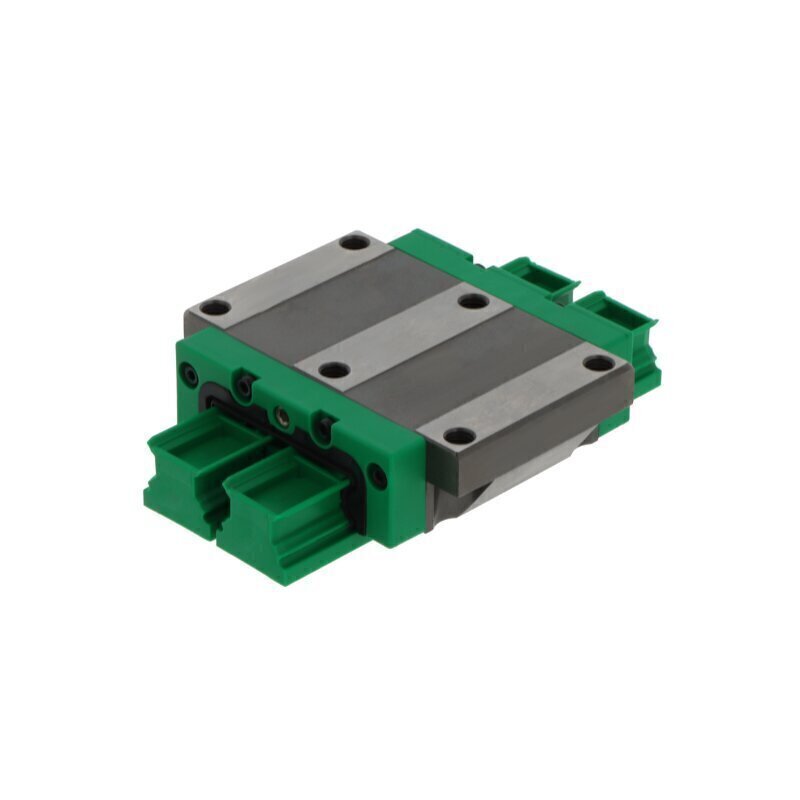

HDR30 CSS THK Carriage
The HDR30 CSS THK Carriage is a precision linear motion component engineered to deliver reliable performance and smooth operation across a wide range of industrial applications. This flange carriage features a wide design configuration, combining THK's engineering expertise with robust construction suitable for applications requiring precision positioning, consistent motion control, and enhanced load capacity in standard industrial environments.
Key Features:
- Series & Design: 30 series flange carriage with wide design configuration for enhanced stability and increased load distribution capabilities
- Rolling Elements: Four-row ball type rolling elements delivering excellent load distribution, smooth motion accuracy, and consistent linear performance
- Construction: Durable steel and plastic materials engineered for extended operational lifespan, reliability, and dependable performance in demanding industrial environments
- Sealing Protection: Comprehensive sealing system featuring end seals, sealing strips, and inner seals to protect against contamination and ensure optimal performance in challenging work conditions
- Lubrication & Maintenance: Relubrication via lubrication nipple system allows for convenient maintenance and extended bearing life with periodic lubrication without requiring component disassembly
- Tolerance & Preload: Normal tolerance class with normal preload configuration for balanced performance and dependable reliability in standard precision applications
- Operating Temperature: Functions reliably across -20 to +80°C temperature range for diverse environmental conditions and varying seasonal requirements
- Ball Chain: Supplied without ball chain for customized recirculation requirements and application-specific configurations
Ideal Applications:
The HDR30 CSS carriage is well-suited for:
- Precision linear automation systems requiring enhanced load capacity
- Automated manufacturing equipment and industrial machinery
- Machine tool assemblies demanding accurate linear motion and stability
- Positioning systems and material handling applications
- Heavy-duty industrial operations requiring robust, reliable performance
- Applications where smooth operation and consistent motion control are essential
Seamlessly compatible with THK linear guide rails, this 30 series carriage delivers the precision, stability, and smooth movement essential for high-performance industrial operations, combining durability, reliability, and ease of maintenance in a proven wide-design flange carriage format.
