Quick Code: BB-531508

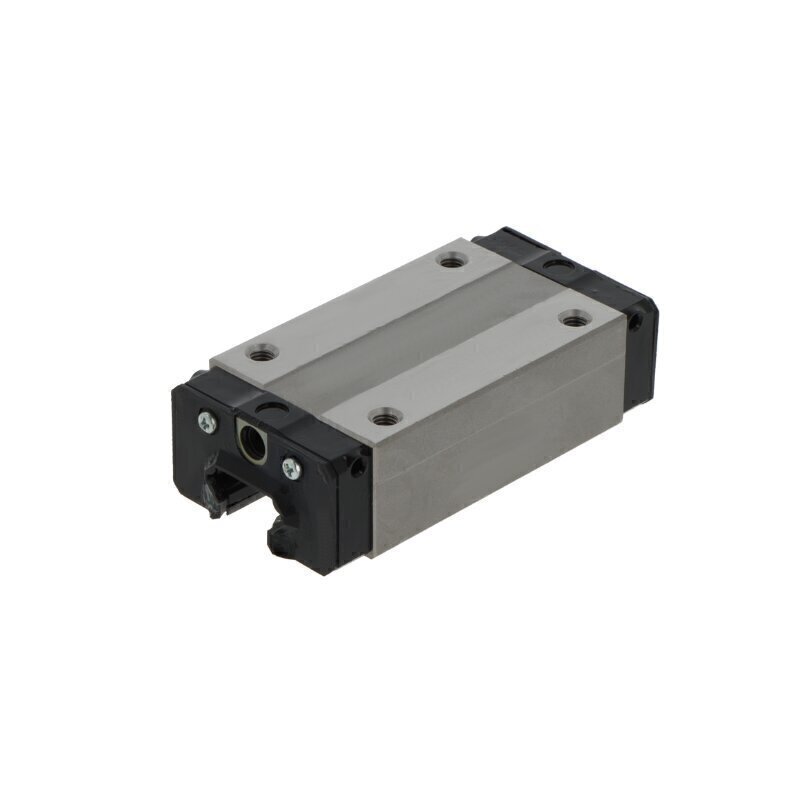

HDR25 LRSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
25 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Small and long design
Reference
HDR25LRSS
Additional Reference:
10192153
Quick Order Code
BB-531508
Product Description
The HDR25 LRSS THK Carriage is a precision linear motion component engineered to deliver smooth, accurate movement in demanding industrial applications. Part of THK's renowned 25 series, this extended-length block carriage combines compact dimensions with robust performance, making it ideal for installations requiring longer travel distances while maintaining precision and reliability.
Key Features:
- Four Row Ball Configuration: Four rows of precision ball rolling elements ensure superior load distribution and smooth operation
- Small and Long Design: Optimized compact profile with extended length for versatile installations requiring greater travel range without sacrificing space efficiency
- Block Carriage Construction: Durable steel and plastic materials provide excellent strength-to-weight ratio and corrosion resistance
- Without Ball Chain: Streamlined design without integrated ball chain for simplified maintenance and reduced complexity
- Comprehensive Sealing System: Features end seals, sealing strips, and inner seals for superior contamination protection in harsh environments
- Relubrication Capability: Convenient maintenance via lubrication nipple for extended component life and reduced downtime
- Normal Preload: Balanced preload setting optimizes performance across standard industrial applications
- Wide Temperature Range: Operates reliably from -20°C to +80°C for year-round performance in diverse environments
- Normal Precision Class: Delivers consistent accuracy meeting standard industrial tolerance requirements
Applications:
The HDR25 LRSS carriage is particularly well-suited for automation equipment, machine tools, material handling systems, packaging machinery, and other industrial systems where extended linear motion, compact design, reliability, and ease of maintenance are essential.
Series: 25 | Brand: THK | Reference: HDR25LRSS
