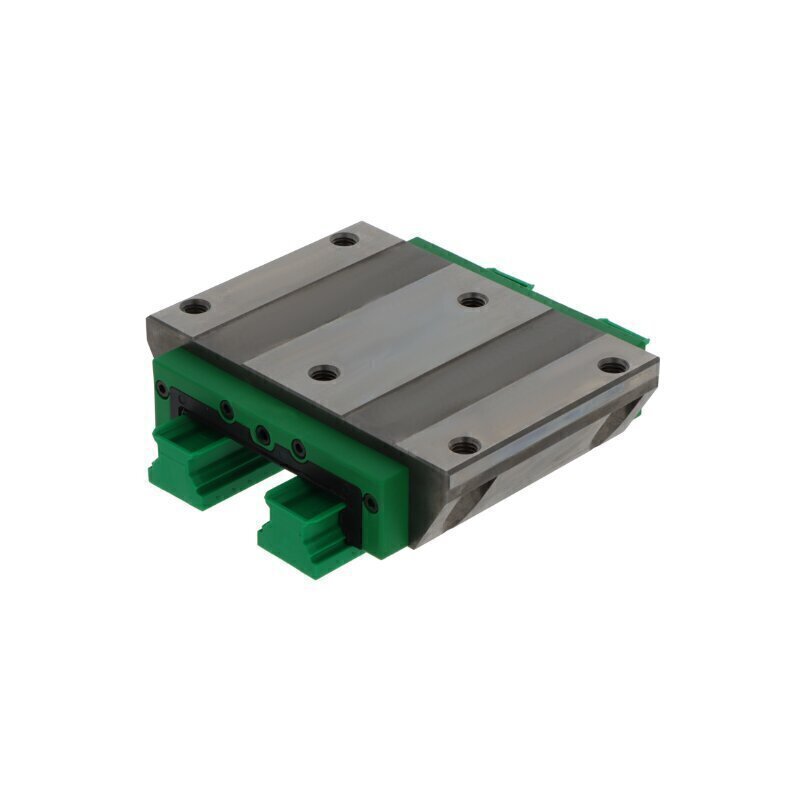

HDR25 LCSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
25 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Wide and long design
Reference
HDR25LCSS
Additional Reference:
10192150
Quick Order Code
BB-531507
Product Description
The HDR25 LCSS THK Carriage is a precision linear motion component engineered for smooth, accurate movement in demanding industrial applications. As part of THK's 25 series, this flange carriage combines robust engineering with advanced sealing technology to deliver reliable performance across diverse operational environments.
Key Features:
- Design: Flange carriage configuration with wide and long design for versatile mounting options and extended travel capabilities
- Series & Configuration: 25 series block carriage optimized for applications requiring both broad positioning range and compact installation
- Rolling Elements: Four-row ball type arrangement for superior load distribution, stability, and smooth operation
- Precision & Tolerance: Normal class tolerance with normal preload settings, balancing accuracy with operational flexibility and load capacity
- Construction Materials: Durable steel and plastic composite construction for optimal strength-to-weight ratio and reliable long-term performance
- Sealing System: Comprehensive triple-seal protection featuring end seals, sealing strips, and inner seals to prevent contamination and extend component life in challenging environments
- Ball Chain Configuration: Standard version without ball chain for straightforward installation and simplified integration
- Lubrication: Relubrication capability via lubrication nipple for convenient maintenance and extended service life
- Operating Temperature Range: -20 to +80°C, suitable for both heated and cold industrial environments
Applications:
The HDR25 LCSS THK Carriage is ideal for industrial applications demanding precision linear motion with extended stroke capability, including:
- Automated assembly and manufacturing systems
- Industrial machinery requiring smooth, reliable linear motion
- Material handling and positioning equipment
- Packaging machinery and production lines
- Manufacturing equipment with moderate to heavy load requirements
- Industrial automation solutions requiring dependable performance and ease of maintenance
This carriage seamlessly integrates with THK linear guide rails to provide exceptional accuracy and reliable performance across a wide range of industrial applications where robust linear motion with extended travel capability is essential.
Brand: THK
