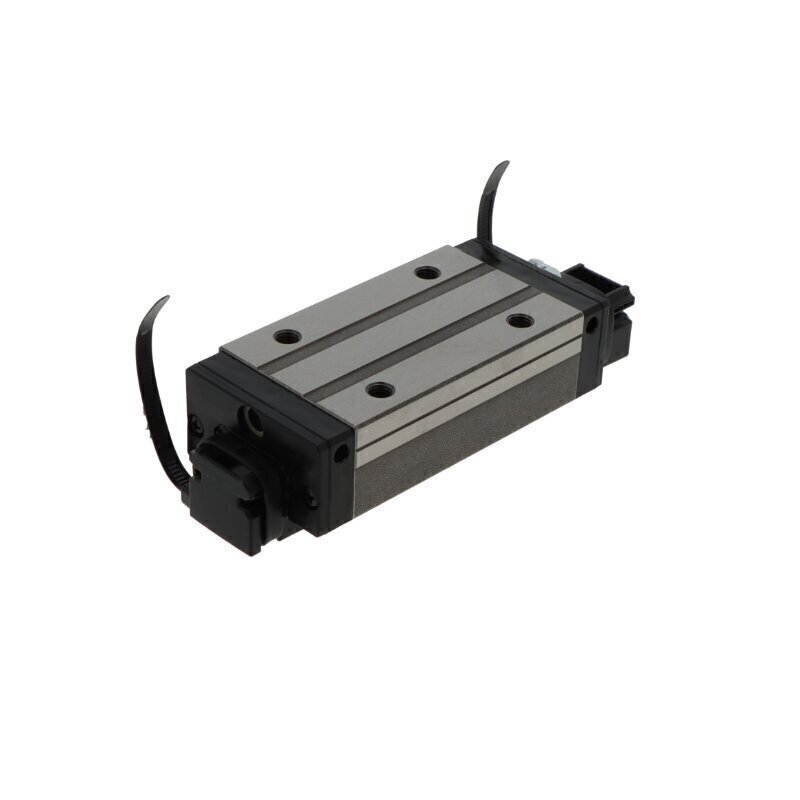

HDR15 LVSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
INA Carriages
NSK Carriages
Schneeberger Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
15 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Low and long design
Reference
HDR15LVSS
Additional Reference:
10192131
Quick Order Code
BB-531498
Product Description
The HDR15 LVSS THK Carriage is a precision linear motion component engineered for seamless integration with THK linear guide rails. This compact block carriage design delivers exceptional accuracy and smooth movement, making it ideal for industrial applications requiring extended travel distances with a low-profile footprint.
Key Features:
- Design: Low and long block carriage configuration, optimizing extended stroke capabilities while maintaining a compact vertical profile for space-constrained installations
- Series: 15 series providing reliable performance for moderate-load linear motion applications
- Rolling Elements: Four-row ball type arrangement for superior load distribution, stability, and consistent precision throughout extended travel distances
- Materials: Durable steel and plastic construction engineered for reliable long-term performance in industrial environments
- Preload: Normal preload setting providing balanced precision and load capacity for general-purpose applications
- Sealing System: Comprehensive multi-stage protection featuring end seals, sealing strips, and inner seals to prevent contamination and extend component life in challenging environments
- Lubrication: Relubrication capability via nipple for convenient maintenance and extended service life
- Tolerance Class: Normal class precision suitable for general industrial applications
- Temperature Range: Operates reliably between -20 to +80°C, accommodating both heated and cold industrial environments
- Configuration: Without ball chain for streamlined operation and reduced complexity
Applications:
The HDR15 LVSS carriage is ideal for machinery and equipment requiring extended linear motion with a low-profile design, including automated material handling systems, precision positioning equipment, compact machining applications, conveyor systems, and industrial automation platforms where extended travel range and space efficiency are essential.
Brand: THK | Reference: HDR15LVSS | Series: 15 Series
