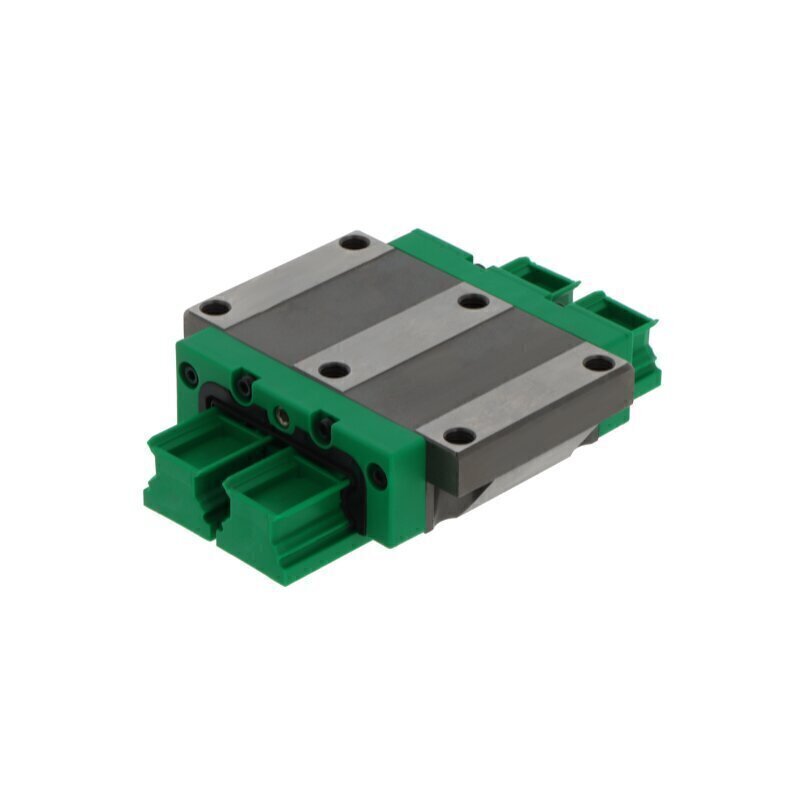

HDR15 CSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
15 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Wide design
Reference
HDR15CSS
Additional Reference:
10192100
Quick Order Code
BB-531493
Product Description
The HDR15 CSS THK Carriage is a precision linear motion component engineered to deliver reliable performance and smooth, accurate movement in demanding industrial applications. Part of THK's trusted 15 series, this wide-design flange carriage combines proven engineering principles with robust construction, making it an excellent choice for applications where precision, durability, and stable linear motion are essential.
Key Features:
- Wide-Design Flange Carriage: Extended profile configuration optimized for secure mounting on linear guide rails with enhanced stability and load distribution
- Four-Row Ball Rolling Elements: Delivers exceptional load capacity, smooth recirculation, and enhanced accuracy for demanding precision applications
- Comprehensive Sealing System: Equipped with end seals, sealing strips, and inner seals to provide superior protection against contamination in challenging industrial environments
- Durable Construction: Steel and plastic materials engineered for excellent strength-to-weight ratio with reliable corrosion resistance
- Flexible Lubrication: Can be relubricated via lubrication nipple for extended service life and convenient maintenance
- Normal Preload: Optimized for standard precision applications with balanced stiffness and smooth operation
- Normal Precision Tolerance: Meets stringent accuracy requirements for general industrial automation and precision machinery
- Wide Operating Range: Functions reliably across temperatures from -20 to +80°C for versatile environmental compatibility
- Standard Version Without Ball Chain: Straightforward design for applications where simplified operation and reduced maintenance are preferred
Applications:
The HDR15 CSS carriage is ideal for CNC machinery, automated assembly systems, packaging equipment, material handling systems, industrial automation, precision manufacturing, and other applications where stable linear motion with flange mounting and dependable performance are essential.
Reference: HDR15CSS | Brand: THK
