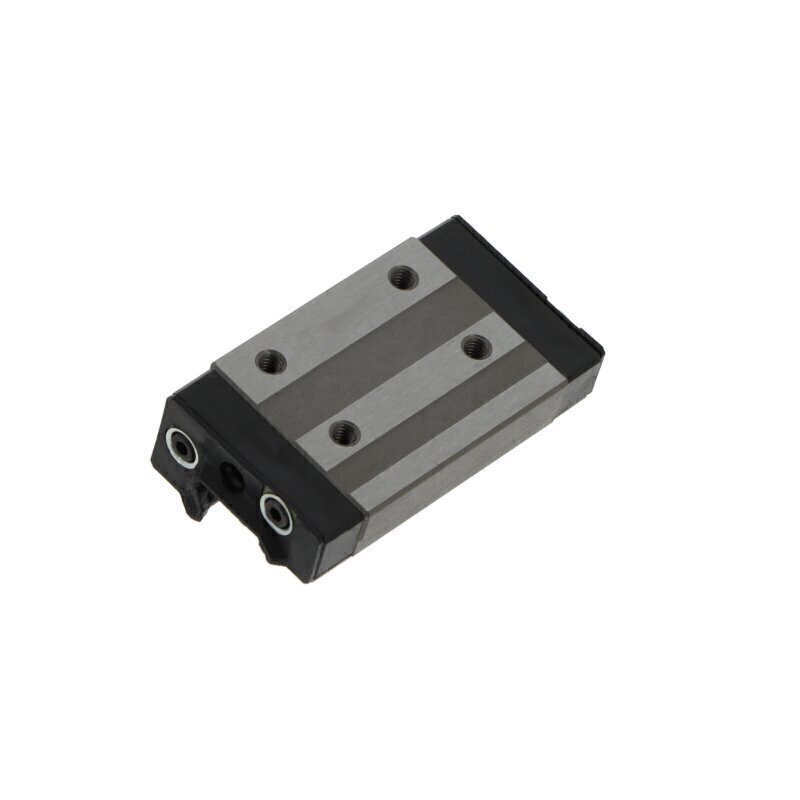

GSR35 TSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Metric Plain Oilite Bearings
Angular Contact Bearings
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
THK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
35 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
With semi-profile
Reference
GSR35TSS
Additional Reference:
10142417
Quick Order Code
BB-522397
Product Description
The GSR35 TSS THK Carriage is a precision linear motion component engineered for reliable performance in industrial automation and machinery applications. This block carriage combines compact design with robust construction, delivering smooth, accurate linear motion along THK guide rails while maintaining excellent load distribution capabilities.
Key Specifications
- Series: 35 series
- Design: Block carriage with semi-profile configuration
- Rolling Elements: Ball type in double row arrangement for balanced load distribution
- Ball Chain: Supplied without ball chain for flexible customization options
- Preload: Normal preload
- Tolerance Class: Normal Class
Construction & Materials
- Materials: Durable steel and plastic construction engineered for industrial durability
- Sealing Options: End seals, sealing strips, and inner seals for comprehensive protection against contamination in demanding environments
- Operating Temperature Range: -20 to +80°C, suitable for diverse operational conditions
Maintenance & Lubrication
- Lubrication System: Can be relubricated via lubrication nipple for easy maintenance and extended component life
- Brand: THK
Ideal Applications
The GSR35 TSS carriage is particularly suited for:
- Industrial automation systems and assembly line machinery
- Machine tool assemblies and precision positioning equipment
- Packaging and material handling systems
- Semiconductor and medical device manufacturing equipment
- Applications requiring reliable linear motion in space-constrained installations
- Systems demanding smooth, accurate movement with moderate load capacities
Fully compatible with THK linear guide rails, this GSR35 TSS carriage delivers the precision, smooth movement, and reliability essential for high-performance industrial operations, combining durability, consistent performance, and straightforward maintenance in a compact block carriage format.
