Transmissions Timing Belts & Pulleys T Section Polyurathane T5 Timing Belts (5mm Pitch)
Quick Code: BB-6877

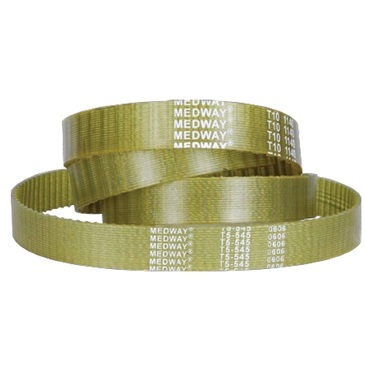

T5-610-16 Medway PU Timing Belt

Name: T5-610-16 Medway PU Timing Belt
Brand: Medway
SKU: T5-610-16 Polyurethane
Price: 18.44 GBP
Availability: InStock

Also Try

T10 Timing Belts (10mm Pitch)

T2.5 Timing Belts (2.5mm Pitch)

Buy Now

Qty:

Product Specification

Brand

Medway

Length

610mm

Number of Teeth

122

Width

16mm

Reference

T5-610-16 Polyurethane

Quick Order Code

BB-6877

Product Description

This metric timing belt (synchronous) is produced from a tough and flexible polyurethane compound that provides a positive drive by the meshing of belt teeth with the grooves of a relating timing belt pulley. It has a wide range of applications from typewriters to heavy industrial machinery.

Construction and Features

The steel tensile member provides high strength to transmit tensile forces and withstand shock loads with virtually no stretch

Linear speeds of up to 75m/sec can be achieved

The meshing of the teeth prevents belt slip and speed variations, thus ensuring perfect synchronisation and positive drive

Standards

Conforms to 1S013050, they meet 1501813 for static conductivity and have an operating temperature range of -25 deg C - +100 deg C

T5 section polyurathane timing belt.
