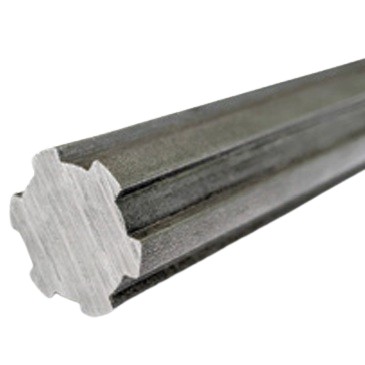

SPS16x13x3.5/1 Metric Splined Shaft with 6 Splines
Also Try
Splined Bushes
Dunlop & Budget Ball Bearings
NUTR Bearings
N NJ NUP Type Cylindrical Roller Bearings
PL Poly V Pulley
Buy Now
Product Specification
c
3.5mm
d
13mm
Length
1000mm
Number of Splines
6
Outside Diameter
16mm
Reference
SPS16x13x3.5/1
Brand
Driveflex
Quick Order Code
BB-704704
Product Description
The metric splined shaft is a precision-engineered component designed for reliable torque transmission and smooth linear motion in a wide range of mechanical assemblies. Manufactured from quality EN8 steel, this shaft delivers the strength and durability required for demanding drive applications.
Featuring 6 splines, this shaft ensures secure engagement with matching splined bushes, allowing efficient power transfer while accommodating axial movement where needed. It is ideal for use in gearboxes, drive systems, machine tools, and other applications requiring dependable rotational coupling.
Key Features
- Material: Manufactured from quality EN8 steel for excellent strength and wear resistance
- Number of Splines: 6 splines for secure torque transmission
- Precision Tolerances: Maximum linear straightness tolerance of 0.8mm per 1000mm length
- Torsional Straightness: 0.5mm per 1000mm length
- Custom Options: Fully machined components available to customer specifications and drawings
