Quick Code: BB-523024

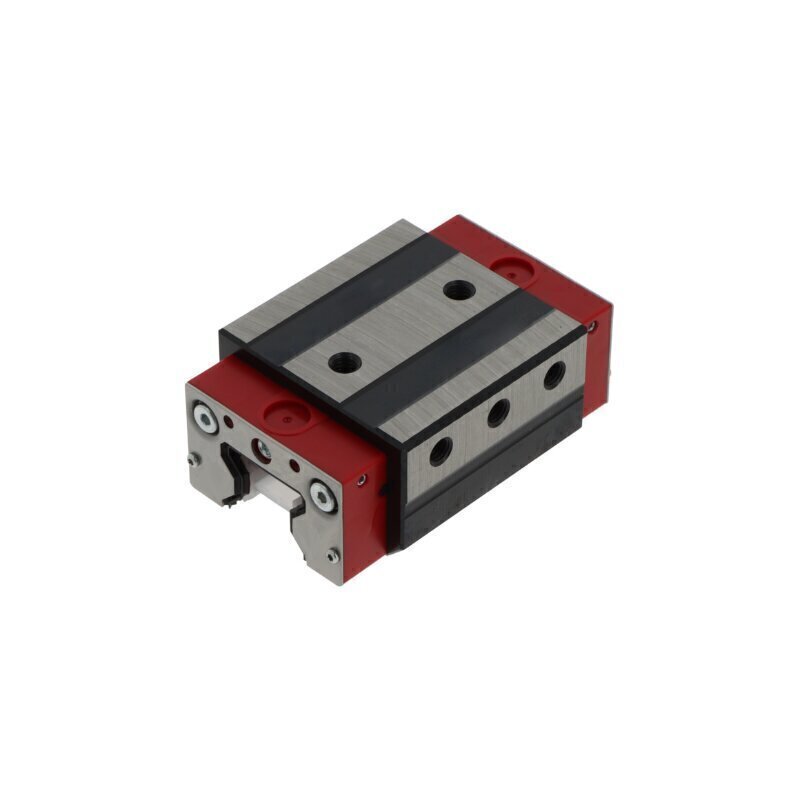

MRW35-E-G3-V1 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
SPC Section Taper Lock Pulleys
06B2 - 3/8inch Duplex Chain Sprocket
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
35 series
Temperature range
-40 to +80 °C
Tolerance class
G3
Type of rolling elements
Rollers
Version
High, for side mounting
Reference
MRW35EG3V1
Additional Reference:
10143697
Quick Order Code
BB-523024
Product Description
The MRW35-E-G3-V1 is a precision block carriage from Schneeberger's 35 series, engineered for demanding linear motion applications. This robust linear carriage features four rows of rollers that deliver smooth, reliable performance across a wide range of industrial environments.
Key Features:
- Design: Block carriage configuration optimized for side mounting applications
- Rolling Elements: Four-row roller system for superior load capacity and stability
- Preload: Light preload setting for smooth operation with minimal friction
- Sealing: Comprehensive seal system including end seals, sealing strips, and inner seals for protection against contaminants
- Tolerance Class: G3 precision grade for accurate linear guidance
- Material Construction: Steel and plastic components for durability and optimal performance
- Operating Temperature Range: -40°C to +80°C for versatile environmental compatibility
- Maintenance: Designed for convenient field relubrication via integrated lubrication nipple
- Ball Chain: Supplied without ball chain for flexible integration
Ideal Applications:
The MRW35-E-G3-V1 is suited for precision automation systems, manufacturing equipment, and industrial machinery requiring reliable linear motion with excellent load distribution and extended service life.
