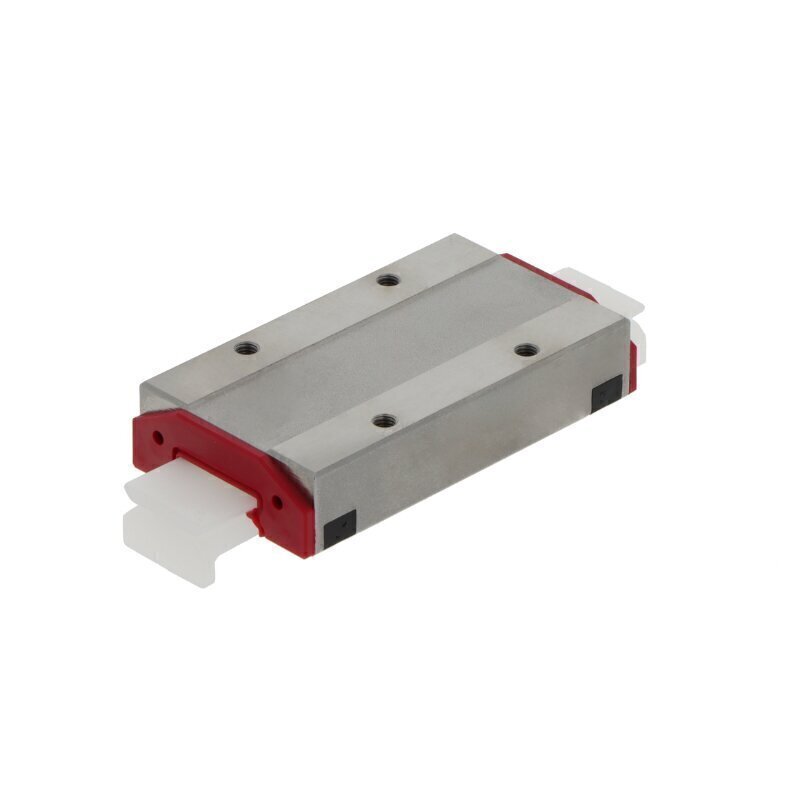

MNNXL12-G1 Schneeberger Carriage
Also Try
Hiwin Carriages
Bosch Rexroth Carriages
THK Carriages
NSK Carriages
INA Carriages
SPB Belts (16.3mm x 13mm)
Sealey
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel (with Anti-Corrosion Protection), Plastic
Seal
End Seals, Sealing Strips and Inner Seals
Series
12 series
Temperature range
-10 to +100 °C
Tolerance class
G1
Type of rolling elements
Balls
Version
Standard version
Reference
MNNXL12G1
Additional Reference:
10162750
Quick Order Code
BB-527757
Product Description
The MNNXL12-G1 is a precision block carriage from Schneeberger's reliable 12 series, engineered for smooth linear motion in demanding industrial applications. This compact carriage delivers excellent performance with dependable guidance and positioning accuracy.
Key Features:
- Double-Row Ball Configuration: Provides balanced load distribution and smooth, consistent motion in both directions
- G1 Tolerance Class: Ensures high precision and repeatable accuracy for critical positioning applications
- Compact Block Design: Space-efficient construction ideal for machinery and equipment with tight spatial constraints
- Ball-Based Rolling Elements: Delivers smooth, low-friction operation for extended service life
- Comprehensive Sealing System: Features end seals, sealing strips, and inner seals for reliable protection against dust and contaminants
- Relubrication Capability: Equipped with integrated lubrication nipple for convenient maintenance and optimal performance
- Durable Materials: Steel with anti-corrosion protection and plastic components provide excellent durability and resistance to wear
- Extended Temperature Range: Operates reliably from -10°C to +100°C, suitable for diverse environmental and thermal conditions
- Flexible Configuration: Supplied without ball chain for customizable integration into various applications
- Standard Version: Proven, reliable design for straightforward integration
Ideal Applications:
Perfect for precision machinery, automation systems, industrial equipment, material handling, and positioning applications where consistent linear motion, high precision, and reliable performance across varied temperature ranges are essential.
Brand: Schneeberger | Reference: MNNXL12G1
