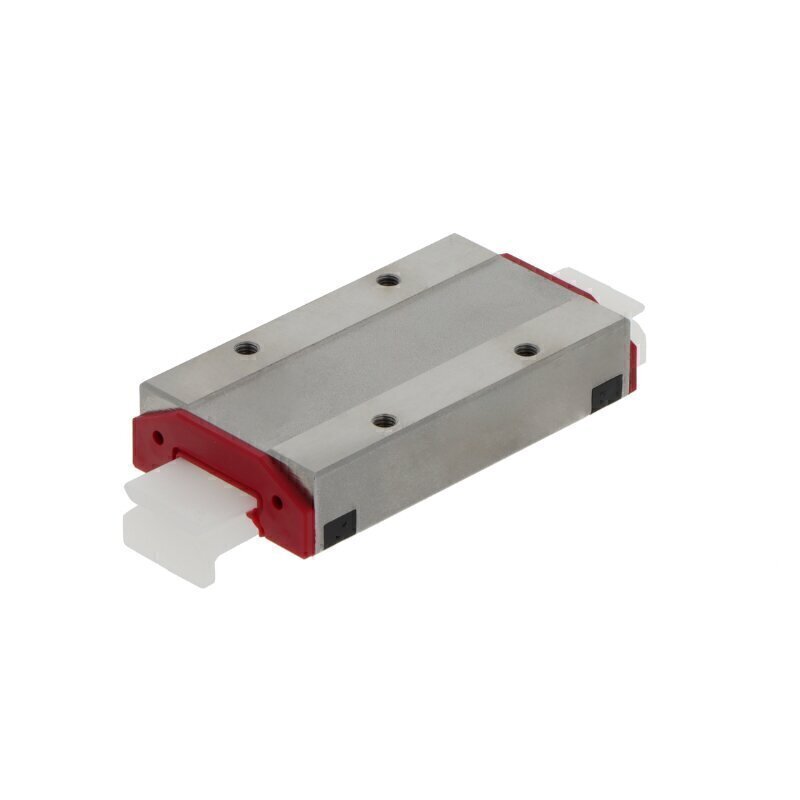

MNN15-G1 Schneeberger Carriage
Also Try
Hiwin Carriages
Bosch Rexroth Carriages
THK Carriages
NSK Carriages
INA Carriages
Batteries - Alkaline
3M Timing Belts (3mm Pitch)
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel (with Anti-Corrosion Protection), Plastic
Seal
End Seals, Sealing Strips and Inner Seals
Series
15 series
Temperature range
-10 to +100 °C
Tolerance class
G1
Type of rolling elements
Balls
Version
Standard version
Reference
MNN15G1
Additional Reference:
10162725
Quick Order Code
BB-527738
Product Description
The MNN15-G1 Schneeberger Carriage is a precision linear carriage from Schneeberger's 15 series, engineered for high-precision linear motion applications requiring exceptional accuracy and reliability. This compact block carriage combines advanced ball bearing technology with robust construction to deliver smooth, consistent performance in demanding industrial environments.
Key Features & Specifications:
- Design: Compact block carriage configuration optimized for space-efficient installations
- Rolling Elements: Double-row precision ball bearing system for smooth linear motion and reliable performance
- Tolerance Class: G1 for ultra-high precision positioning and guidance requirements
- Construction Materials: Steel with anti-corrosion protection combined with plastic components for enhanced durability and corrosion resistance
- Sealing System: Comprehensive protection featuring end seals, sealing strips, and inner seals to effectively shield against contamination and extend operational life
- Lubrication: Relubrication capability via integrated lubrication nipple for convenient maintenance and extended service intervals
- Operating Temperature Range: -10°C to +100°C for versatile deployment across diverse environmental conditions
- Ball Chain: Supplied without ball chain for flexible system integration
Ideal Applications:
The MNN15-G1 is exceptionally well-suited for precision automation equipment, high-precision machine tools, semiconductor manufacturing systems, medical devices, test and measurement systems, and other applications where ultra-high positioning accuracy, smooth operation, and reliable linear guidance are critical requirements.
Reference: MNN15G1 | Brand: Schneeberger
