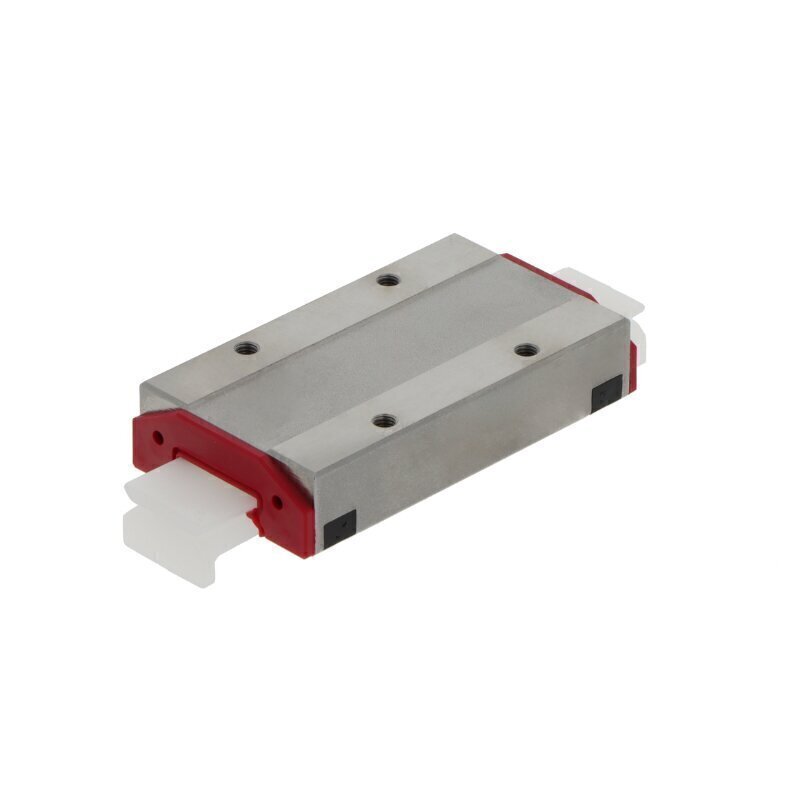

MNN14-G3 Schneeberger Carriage
Also Try
Hiwin Carriages
Bosch Rexroth Carriages
THK Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel (with Anti-Corrosion Protection), Plastic
Seal
End Seals, Sealing Strips and Inner Seals
Series
14 series
Temperature range
-10 to +100 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Standard version
Reference
MNN14G3
Additional Reference:
10162723
Quick Order Code
BB-527737
Product Description
MNN14-G3 Schneeberger Carriage
The MNN14-G3 is a precision block carriage from Schneeberger's 14 series, engineered to deliver reliable linear motion performance in demanding industrial applications. This carriage combines robust construction with precision engineering, making it an ideal choice for systems requiring smooth, accurate positioning and consistent performance.
Key Features:
- Design: Block carriage with standard configuration
- Rolling Elements: Double-row ball bearing system for balanced load distribution and enhanced rigidity
- Sealing: Comprehensive protection including end seals, sealing strips, and inner seals to protect against contaminants and extend service life
- Construction: Durable steel with anti-corrosion protection and reinforced plastic components for superior strength and longevity
- Tolerance Class: G3 precision grade for consistent, repeatable positioning accuracy
- Operating Temperature Range: -10°C to +100°C for reliable performance across diverse environmental conditions
- Maintenance: Relubrication capability via integrated lubrication nipple for extended service intervals and reduced maintenance downtime
- Ball Chain: Without ball chain configuration
Applications:
Ideal for precision automation systems, CNC machinery, packaging equipment, medical device assemblies, industrial machinery, and other applications where dependable linear motion, compact design, and maintenance efficiency are essential requirements.
Reference: MNN14G3
