Quick Code: BB-526496

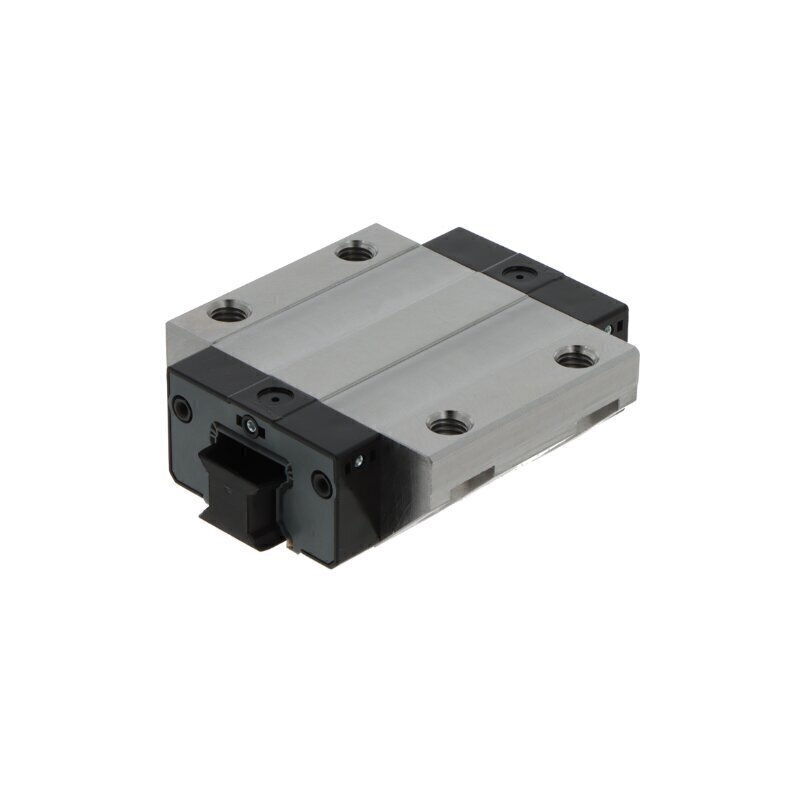

BMW30-H-G3-V1 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Schneeberger
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
30 series
Temperature range
-40 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Low design
Reference
BMW30HG3V1
Additional Reference:
10157106
Quick Order Code
BB-526496
Product Description
The BMW30-H-G3-V1 Schneeberger Carriage is a precision flange carriage engineered for reliable linear motion in industrial applications. This versatile linear carriage combines proven design principles with robust construction to deliver consistent performance across diverse operating conditions.
Key Specifications:
- Series: 30 series
- Design: Flange carriage with low design profile
- Rolling Elements: Ball-based system with four rows for balanced load distribution and smooth operation
- Tolerance Class: G3 for standard precision positioning requirements
- Preload: Light preload configuration for reduced friction and extended component lifespan
- Ball Chain: Without ball chain
Construction & Durability:
- Material: Steel and plastic composite construction for reliable durability
- Sealing System: Comprehensive protection featuring end seals, sealing strips, and inner seals to prevent contamination and maintain performance
- Temperature Range: -40 to +80°C, suitable for both cold and warm industrial environments
- Lubrication: Relubrication capability via dedicated lubrication nipple for extended service life and minimal maintenance requirements
Applications:
The BMW30-H-G3-V1 is ideal for industrial automation systems, precision machinery, positioning applications, and other linear motion systems where reliable performance and compact design are valued. The low profile design and light preload configuration make it particularly suitable for space-constrained applications requiring smooth, efficient linear motion with moderate precision demands.
Brand: Schneeberger | Reference: BMW30HG3V1
