Quick Code: BB-526486

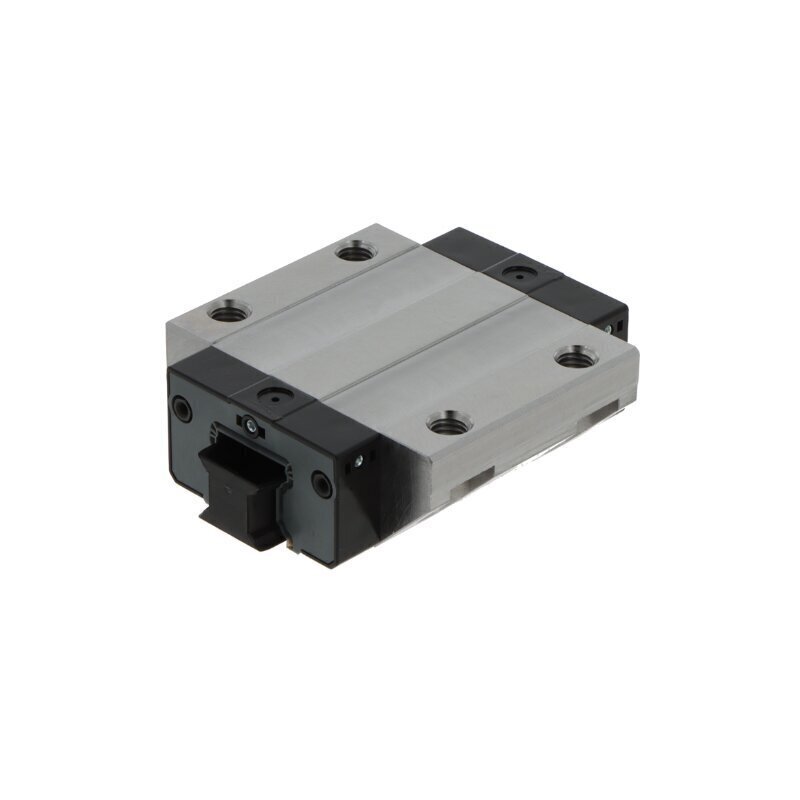

BMW20-H-G3-V1 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
THK Carriages
INA Carriages
NSK Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Schneeberger
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
20 series
Temperature range
-40 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Low design
Reference
BMW20HG3V1
Additional Reference:
10157096
Quick Order Code
BB-526486
Product Description
The BMW20-H-G3-V1 is a precision flange carriage from Schneeberger's 20 series, designed for demanding linear motion applications requiring robust performance and reliability. This compact linear carriage combines precision engineering with durable construction, making it ideal for industrial automation, machine tools, positioning systems, and applications that demand dependable linear guidance with minimal maintenance.
Key Features & Specifications:
- Design: Flange carriage with low design configuration
- Rolling Elements: Four-row ball bearing system for smooth, precision motion
- Ball Chain: Without ball chain design for streamlined installation and maintenance
- Preload: Light preload for optimal balance between precision and smooth operation
- Tolerance Class: G3 for high-precision applications
- Materials: Steel and plastic construction for durability and lightweight performance
- Sealing System: End seals, sealing strips, and inner seals provide comprehensive protection against contamination
- Lubrication: Relubrication capability via dedicated lubrication nipple for extended service life and reduced downtime
- Operating Temperature Range: -40°C to +80°C, suitable for diverse industrial environments and temperature-sensitive applications
Applications:
This carriage is particularly well-suited for machinery operating in challenging temperature environments, precision manufacturing equipment, automation systems with space constraints, and applications requiring dependable linear guidance with minimal maintenance overhead.
Brand: Schneeberger | Reference: BMW20HG3V1
