SPZ500 TuffBelt Wedge Belt
Help Articles
Also Try
SPA Belts (12.7mm x 10mm)
A Belts (13mm x 8mm)
SPZX Belts (9.7mm x 8mm)
SPZ Section Taper Lock Pulleys
Taper Bushes
Buy Now
Product Specification
Brand
TuffBelt
External Length (Approx)
513mm
Internal Length (Approx)
463mm
Pitch Length (Approx)
500mm
Top Width x Depth (Approx)
9.7mm x 8mm
Reference
SPZ500
Quick Order Code
BB-35097
Product Description

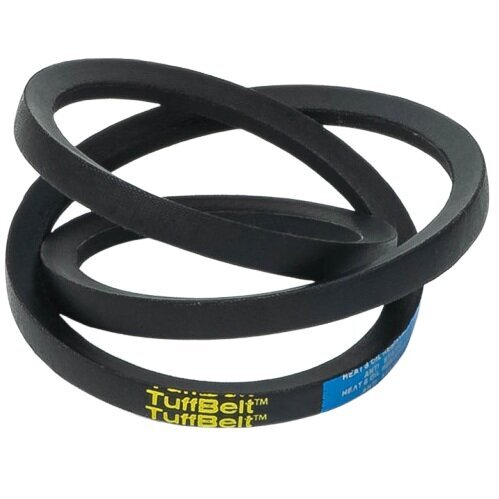

SPZ500 Wedge Belt by TuffBelt
A robust and reliable power transmission solution, this TuffBelt SPZ section wedge belt is engineered to excel in demanding agricultural and industrial applications. Manufactured to precise specifications, this belt delivers consistent performance across a wide range of machinery including pumps, compressors, processing equipment, and agricultural implements.
With their narrow profile, TuffBelt wedge belts are engineered for installations where space is limited, yet high performance is essential. Their wedge-shaped cross section increases the contact area with the pulley, creating greater friction and allowing them to transmit significantly more power than traditional V belts. Despite their compact size, they deliver exceptionally high load carrying capacity, making them ideal for both demanding power transmission tasks and standard applications.
Key Features
