Quick Code: BB-530907

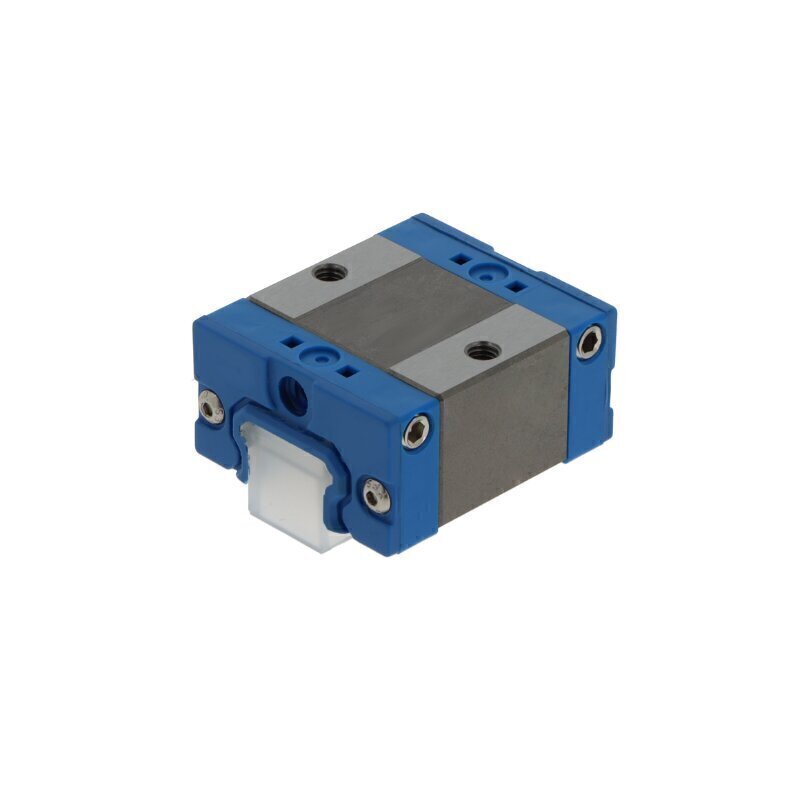

LGBXS20 BSSSNZ1-N SNR Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
SNR
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
20 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Low and short design
Reference
LGBXS20BSSSNZ1N
Additional Reference:
10188697
Quick Order Code
BB-530907
Product Description
The LGBXS20 BSSSNZ1-N SNR Carriage is a precision-engineered linear bearing carriage designed for smooth, reliable linear motion in a variety of industrial applications. Part of the SNR 20 series, this block carriage features a low and short design, making it ideal for compact machinery and equipment where space is at a premium.
Built with a robust steel and plastic construction, this carriage utilizes ball-type rolling elements arranged in a double row configuration, providing excellent load distribution and stability during operation. The light preload ensures smooth movement while maintaining accuracy for precision applications.
Key Features:
- Design: Block carriage with low and short profile
- Series: 20 series
- Rolling Elements: Balls in double row arrangement
- Material: Steel and Plastic
- Preload: Light preload
- Tolerance Class: Normal Class
- Sealing: Comprehensive protection with end seals, sealing strips, and inner seals
- Lubrication: Can be relubricated via lubrication nipple for extended service life
- Ball Chain: Without ball chain
- Operating Temperature: -10°C to +100°C
Typical Applications:
- CNC machinery and machine tools
- Automated assembly systems
- Packaging equipment
- Material handling systems
- Precision measuring instruments
Reference: LGBXS20BSSSNZ1N
Brand: SNR
