Quick Code: BB-530901

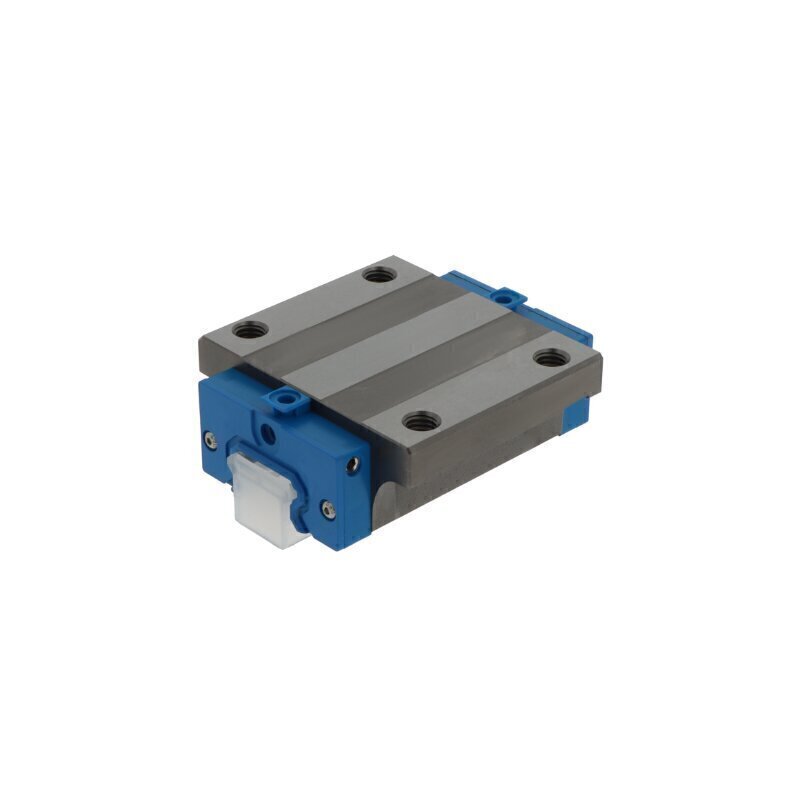

LGBXH15 FLSSNZ1-N SNR Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
SNR
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
15 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Long design
Reference
LGBXH15FLSSNZ1N
Additional Reference:
10188684
Quick Order Code
BB-530901
Product Description
The LGBXH15 FLSSNZ1-N is a high-quality linear carriage manufactured by SNR, designed for precise linear motion applications. This flange-style carriage from the 15 series offers reliable performance with its double-row ball configuration, ensuring excellent load capacity and smooth operation.
Built with a combination of steel and plastic materials, this carriage features a long design format that provides enhanced stability and support for demanding applications. The light preload specification ensures optimal balance between rigidity and smooth movement.
Key Features:
- Design: Flange carriage with long design configuration
- Rolling Elements: Ball type with double row arrangement
- Series: 15 series
- Preload: Light preload for smooth operation
- Tolerance Class: Normal class precision
- Sealing: Comprehensive protection with end seals, sealing strips, and inner seals
- Lubrication: Can be relubricated via lubrication nipple for extended service life
- Operating Temperature: -10°C to +100°C
- Ball Chain: Without ball chain
- Material: Steel and Plastic construction
Typical Applications:
- CNC machinery and machine tools
- Automated assembly systems
- Packaging equipment
- Printing machinery
- Material handling systems
- Robotics and pick-and-place systems
Reference: LGBXH15FLSSNZ1N
Brand: SNR
