Quick Code: BB-530928

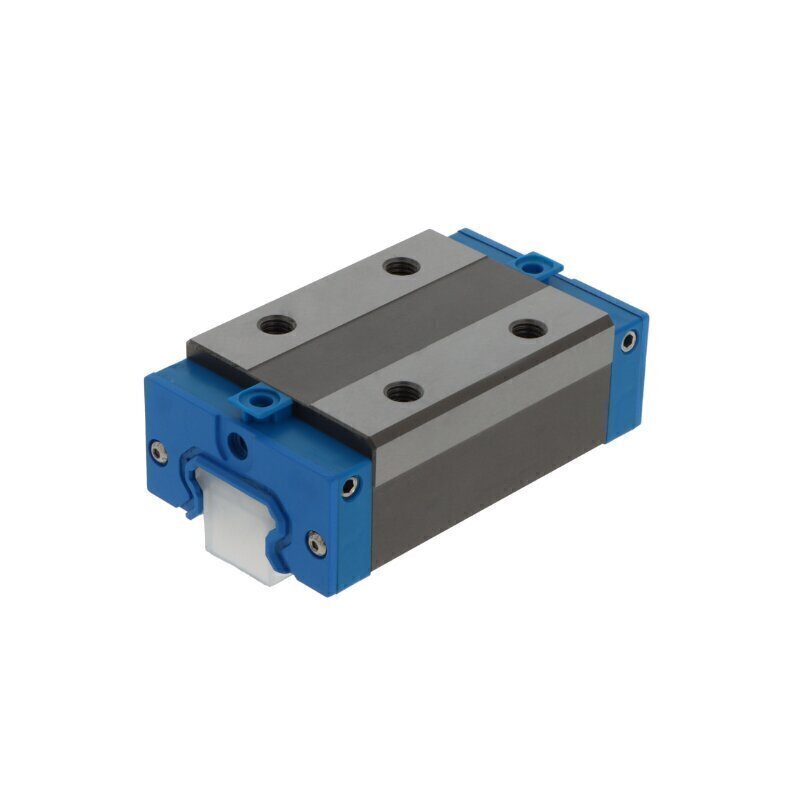

LGBCS55 BLSSNZ1-N SNR Carriage
The LGBCS55 BLSSNZ1-N SNR Carriage is a heavy-duty linear bearing carriage engineered for demanding industrial applications requiring precise linear motion. Part of the SNR 55 series, this block carriage features a low and long design configuration, providing extended load distribution and exceptional stability for larger machinery and equipment.
Constructed from robust steel and plastic materials, this carriage employs ball-type rolling elements arranged in a double row configuration for superior load capacity and smooth, reliable operation. The inclusion of a ball chain ensures optimal ball circulation, reducing wear and extending service life. With light preload, this carriage delivers excellent performance with minimal friction while maintaining high accuracy.
Key Features:
- Design: Block carriage with low and long profile
- Series: 55 series
- Rolling Elements: Balls in double row arrangement
- Ball Chain: With ball chain for improved ball circulation
- Material: Steel and Plastic
- Preload: Light preload
- Tolerance Class: Normal Class
- Sealing: Comprehensive protection with end seals, sealing strips, and inner seals
- Lubrication: Can be relubricated via lubrication nipple for extended service life
- Operating Temperature: -10°C to +100°C
Typical Applications:
- Heavy-duty CNC machinery and machine tools
- Large-scale automated assembly systems
- Industrial packaging equipment
- Material handling and conveying systems
- Precision positioning equipment
- Woodworking and metalworking machinery
- Robotic systems and automation lines
Reference: LGBCS55BLSSNZ1N
Brand: SNR
